Bobcat CT2540 vs Bobcat CT2035 | Side-by-side comparison | ITC Resource Center
Compare Tractors

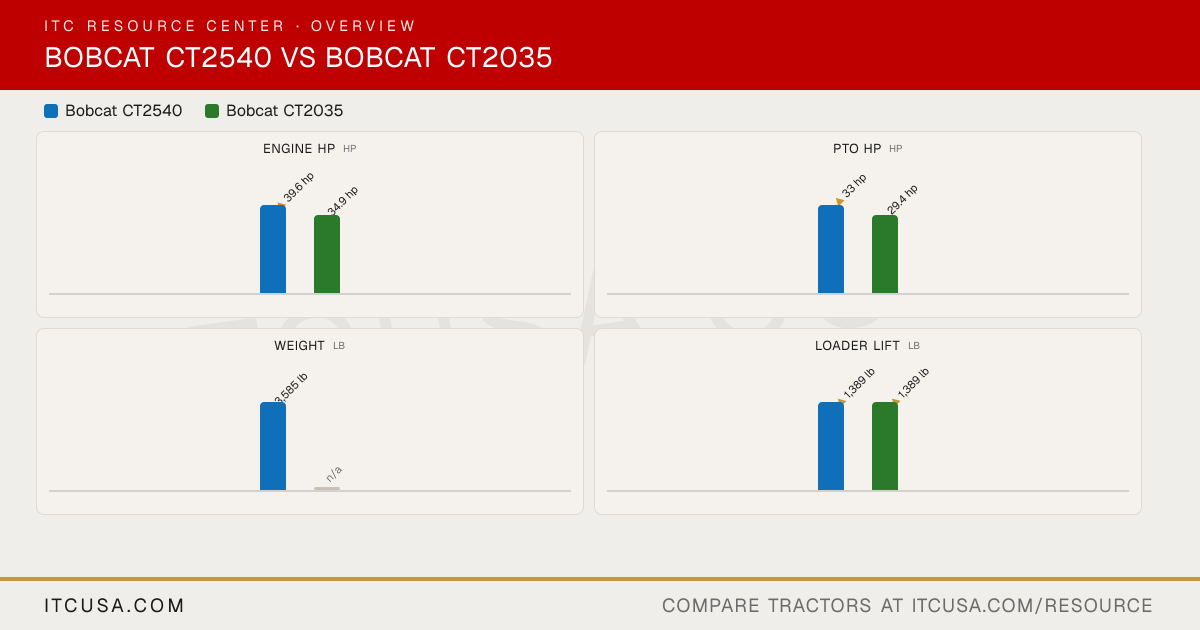

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT2540
BobcatCT2035
PTO Power
33 hp
29.4 hp
Alternator
75 A, 12 V
alternator
Air Cleaner
Dry type, replaceable
Dry type, replaceable
Engine Type
3 cylinder, water cooled, 4 cycle, Vertical In-Line Common Rail Direct Injection (CRDI)
Diesel
Fuel System
Common Rail Direct Injection (CRDI)
Common Rail Direct Injection (CRDI)
Displacement
109.8 in³
111.4 in³
Engine Model
Daedong 0.5 gal 3-cyl diesel
Daedong 0.5 gal 3-cyl diesel
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Water cooled
Water cooled
Engine Manufacturer
Daedong
Daedong
Engine Power (Gross)
39.6 hp
34.9 hp
Engine Emissions Constraints
Stage V
Stage V
Weight with ROPS and Loader
3585 lbs
1410.00 KG
Weight with Cab and Loader
3,642 lb
NOT FOUND
Warranty Length & Coverage
24 months of coverage from defects in material and workmanship or 1,500 hours of usage (whichever occurs first)
24 months or 1,500 hours (whichever occurs first)
Pump Type
Gear
26.00
Steering Flow
4.5 gpm
4.5 gpm
Implement Flow
6.9 gpm
11.34 gpm 42.9 lpm
Total Hydraulic Flow
11.3 gpm
11.4 gpm
Hydraulic System Type
Open Center
Open Center
Rear Remote Hydraulic Flow
NOT FOUND — no source reviewed explicitly lists a separate 'Rear Remote Hydraulic Flow' figure for the CT2540. Sources only report total Implement Pump Flow of 11.7 gpm (44.5 Lpm).
26.00
Overall Hydraulic Pump Flow
11.7 gpm (44.5 Lpm)
11.4 gpm
No. of Optional Remote Valves
NOT FOUND — no source reviewed explicitly lists a count of *optional* remote valves for the CT2540. The spec sheet at tractorgearbox.com lists 'Number of Standard Remote Valves: 1/2' only.
NOT FOUND
No. of Standard Remote Valves
Std. (4 port)
Std. (2 port)
PTO Rear
540/540E RPM
540 rpm
PTO Type
Independent
Live
Lift Control Type
Position
Hydraulic Position Control System
Hitch Lift Capacity
2,270.7 lb
1631 lb.
Mid-PTO Availability
2000.0 RPM
Optional: 1988 rpm
Category, 3-Point Hitch
Category 1
Category 1
Hitch Lift Capacity (at 24”)
1,631 lb
1,631 lb
R3 Turf - Rear
41x14.0-20 R3
41x14.0-20 R3
R3 Turf - Front
27x8.5-15 R3
27x8.5-15 R3
Tire Size & Options
Not Published
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
15-19.5 R4
15-19.5 R4
R4 Industrial - Front
25x8.5-14 R4
25x8.5-14 R4
R1 Agricultural - Rear
11.4-24 R1
11.2-24
R1 Agricultural - Front
7-16 R1
7-16
Coolant Capacity
NOT FOUND — field label present in source but numeric value is truncated/missing in all retrieved results
0.9 gal
Crankcase Capacity
6.4 qts
2 gal
Fuel Tank Capacity
9 gal
9.0 gal.
Front Axle Fluid Capacity
NOT FOUND — no explicit value located in any source
1.6 gal
Transmission / Hydraulic System Capacity
NOT FOUND — no explicit fill capacity value located in any source
5.8 gal
Loader Model
Bobcat FL8
FL8
Loader Lift Height
100 in
99.6 in.
Loader Breakout Force
2838 lbs
3285 lb.
Quick Attach Loader System
NOT FOUND — no CT2540-specific quick attach system name/model explicitly stated in any source reviewed
