Compare Tractors

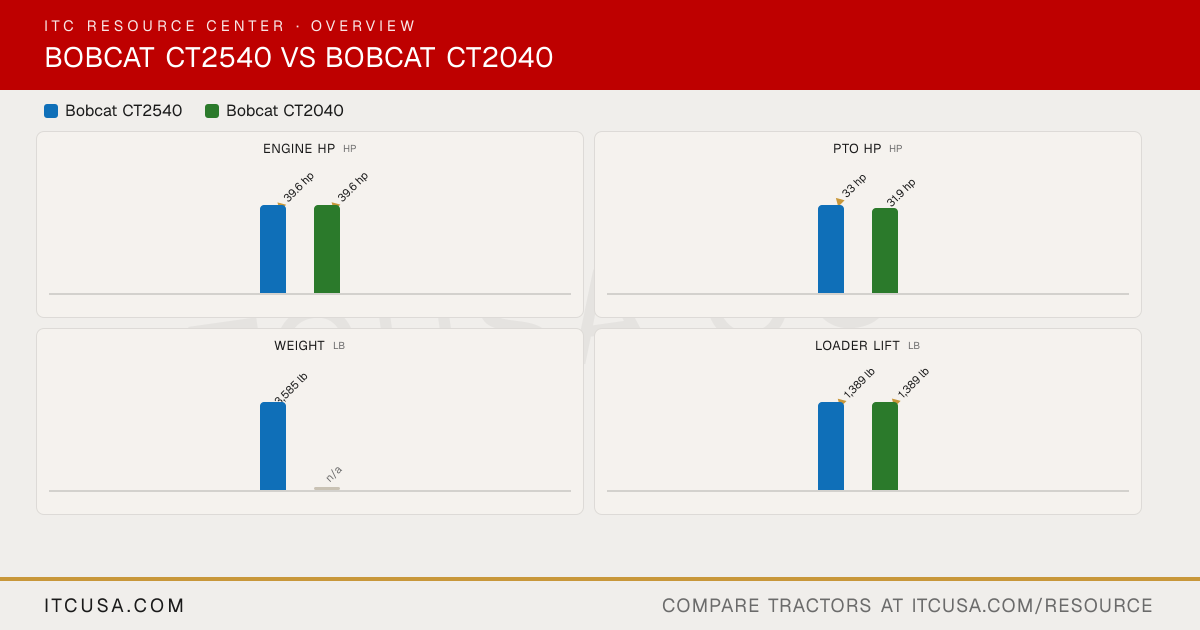

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT2540
BobcatCT2040
PTO Power
33 hp
31.9 hp
Alternator
75 A, 12 V
alternator
Air Cleaner
Dry type, replaceable
NOT FOUND — no source reviewed explicitly states an air cleaner type for the CT2040
Engine Type
3 cylinder, water cooled, 4 cycle, Vertical In-Line Common Rail Direct Injection (CRDI)
Diesel
Fuel System
Common Rail Direct Injection (CRDI)
Common rail direct injection
Displacement
109.8 in³
111.4 in³
Engine Model
Daedong 0.5 gal 3-cyl diesel
Daedong 0.5 gal 3-cyl diesel
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Water cooled
liquid-cooling
Engine Manufacturer
Daedong
Daedong
Engine Power (Gross)
39.6 hp
39.6 hp
Engine Emissions Constraints
Stage V
Stage V
Weight with ROPS and Loader
3585 lbs
Not Published
Weight with Cab and Loader
3,642 lb
Not Applicable
Warranty Length & Coverage
24 months of coverage from defects in material and workmanship or 1,500 hours of usage (whichever occurs first)
24 months or 1,500 hours (whichever occurs first)
Pump Type
Gear
Gear
Steering Flow
4.5 gpm
4.5 gpm
Implement Flow
6.9 gpm
11.7 gpm 44.3 lpm
Total Hydraulic Flow
11.3 gpm
11.4 gpm
Hydraulic System Type
Open Center
Open Center
Rear Remote Hydraulic Flow
NOT FOUND — no source reviewed explicitly lists a separate 'Rear Remote Hydraulic Flow' figure for the CT2540. Sources only report total Implement Pump Flow of 11.7 gpm (44.5 Lpm).
Optional
Overall Hydraulic Pump Flow
11.7 gpm (44.5 Lpm)
11.4 gpm
No. of Optional Remote Valves
NOT FOUND — no source reviewed explicitly lists a count of *optional* remote valves for the CT2540. The spec sheet at tractorgearbox.com lists 'Number of Standard Remote Valves: 1/2' only.
NOT FOUND
No. of Standard Remote Valves
Std. (4 port)
1/2
PTO Rear
540/540E RPM
540 rpm
PTO Type
Independent
Live
Lift Control Type
Position
Hydraulic Position Control System
Hitch Lift Capacity
2,270.7 lb
1631 lb.
Mid-PTO Availability
2000.0 RPM
Optional: 1988 rpm
Category, 3-Point Hitch
Category 1
Category 1
Hitch Lift Capacity (at 24”)
1,631 lb
1,631 lb
R3 Turf - Rear
41x14.0-20 R3
41 x 14-20/4
R3 Turf - Front
27x8.5-15 R3
28 x 8.5-15/6
Tire Size & Options
Not Published
Front AG. (TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15) | Rear AG. (TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)
R4 Industrial - Rear
15-19.5 R4
15-19.5
R4 Industrial - Front
25x8.5-14 R4
27X8.5-15
R1 Agricultural - Rear
11.4-24 R1
11.2-24
R1 Agricultural - Front
7-16 R1
7-16
Coolant Capacity
NOT FOUND — field label present in source but numeric value is truncated/missing in all retrieved results
Not Published
Crankcase Capacity
6.4 qts
6.4 qts
Fuel Tank Capacity
9 gal
9.0 gal.
Front Axle Fluid Capacity
NOT FOUND — no explicit value located in any source
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND — no explicit fill capacity value located in any source
Not Published
Loader Model
Bobcat FL8
FL8
Loader Lift Height
100 in
99.6 in.
Loader Breakout Force
2838 lbs
3285 lb.
Quick Attach Loader System
NOT FOUND — no CT2540-specific quick attach system name/model explicitly stated in any source reviewed
