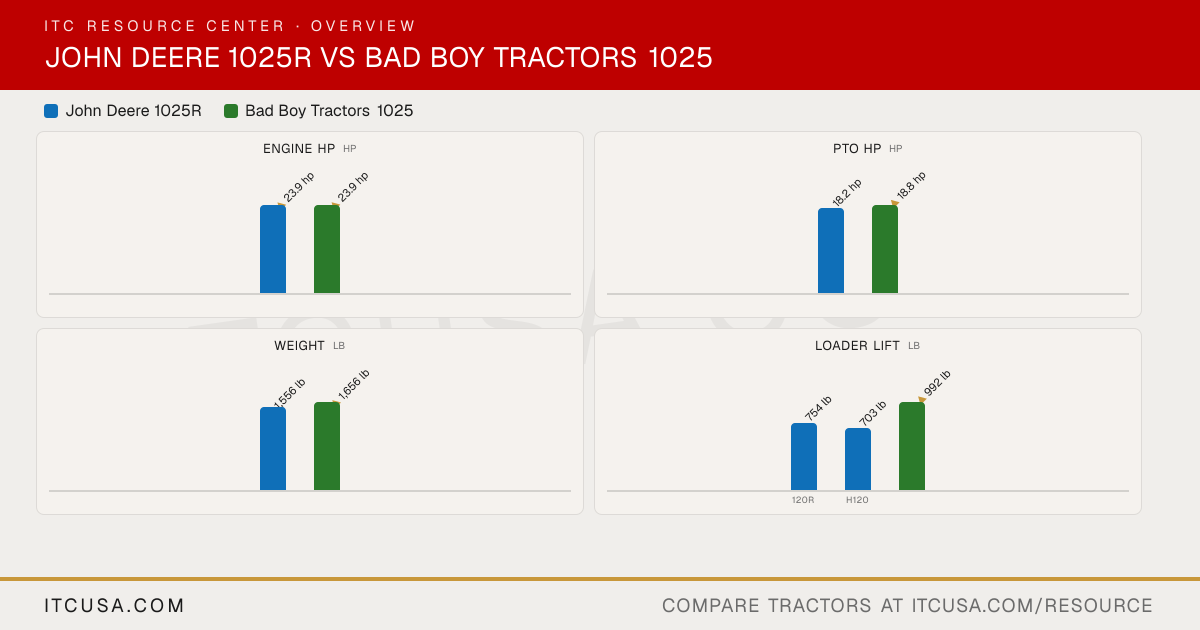

▶ EnginePTO Power 18.2 hp 18.8 hp Alternator 40 A 40 A, 12 V Air Cleaner Dual element with mechanical restriction indicator Dry Element Engine Type Diesel Water cooled 4 cycle, 3 cylinder diesel Fuel System Indirect injection Indirect Injection Displacement 77.3 in³ 77.3 in³ No. of Cylinders 3 3 Rated Engine Speed 3200 rpm 3000 rpm Cooling System Type Water pump Water cooled, Forced circulation Engine Manufacturer Yanmar YANMAR Engine Power (Gross) 23.9 hp @ 200 rpm 23.9 hp Engine Emissions Constraints Tier 4 Not Published ▶ WeightTractor Weight (Base) Open station: 1556 lb 1,656 lb Weight with Cab and Loader approx. 1,996 lb shipping weight with cab Not Applicable Weight with ROPS and Loader approx. 1,444 lb shipping weight open station (no loader); operating weight with loader approx. 1,556 lb shipping 1,610 lb ▶ WarrantyWarranty Length & Coverage 6-year / 2,000-hour powertrain warranty (standard); PowerGard extended warranty available Engine & Powertrain: 84 months (7 years) or 2,000 hours ▶ HydraulicsPump Type Single gear Gear pump Steering Flow 3.5 gpm 2.8 gpm Implement Flow 3.5 gpm 4.2 gpm Total Hydraulic Flow 6.3 gpm 23.8 lpm 7.0 gpm Hydraulic System Type Open center Power Assisted Hydro-Static System Operating Pressure 2000 psi 341.7 lbf/cm2 Rear Remote Hydraulic Flow 3.5 gpm per pump (implement circuit); total system output 6.3 gpm Not Applicable Overall Hydraulic Pump Flow 3.5 gpm 13.2 lpm 6.95 gpm No. of Optional Remote Valves Three Not Published No. of Standard Remote Valves n/a Not Applicable ▶ PTO & HitchPTO Rear 540 rpm 540 rpm @ 2,893 engine rpm PTO Type Independent Independent Lift Control Type position control Position control Hitch Lift Capacity 758 lb 1,323 lb Mid-PTO Availability 2100 rpm Yes (2,000 rpm @ 2,875 engine rpm) Category, 3-Point Hitch Limited Category 1 Category I (N) Hitch Lift Capacity (at 24”) 758 lb 1,101 lb @ 24 in behind lift point ▶ Tire OptionsR3 Turf - Rear 26x12-12 29X12.5-15 R3 Turf - Front 18x8.50-10 20X8-10 Tire Size & Options Front: R3 Turf 18x8.50-10, R3 Turf Radial 18x8.50-10, R4 18x8.5-10 | Rear: R3 Turf 26x12-12, R4 26x12-12 R1 (Ag) / R3 (Turf) / R4 (Industrial) R4 Industrial - Rear 26x12-12 27X12-16.5 R4 Industrial - Front 18x8.5-10 23X8.5-12 R1 Agricultural - Rear 26x12.00-12 (R4 Industrial standard; R1 Agricultural not a standard listed option) 9.5-16 R1 Agricultural - Front 18x8.50-10 (R3 Turf / R4 Industrial listed; R1 Agricultural not a standard listed option) 6-12 ▶ Fluid CapacityCoolant Capacity 0.98 gal 3.8 ℓ (1 US gal) Crankcase Capacity 0.71 gal 2.7 ℓ (0.71 US gal) Fuel Tank Capacity 5.6 gal 22 ℓ (5.81 US gal) Front Axle Fluid Capacity 0.74 gal 0.85 gal Transmission / Hydraulic System Capacity 3.3 gal 3.83 gal ▶ Loader & AttachmentsLoader Lift Height 72 in to maximum height at pivot pin (120R loader) 75.5 in (pivot pin) Loader Breakout Force 120R: 1,823 lbf at pivot point; H120: 1,724 lbf at pivot point 1,531 lb (pivot pin, ground level) Quick Attach Loader System 120R Quik-Park Loader System SSQA Loader Lift Capacity (Full Height) 120R: 754 lb at pivot point to max height; H120: 703 lb at pivot point to max height 992 lb (pivot pin) ▶ Transmission & DrivetrainClutch wet disc No No. of Speeds Infinite (hydrostatic), 2-range (Hi/Lo) forward and reverse 2 range (Low/High) Transmission Type hydrostatic Hydraulic + Mechanical H/L with Sliding-mesh MFWD(4WD) Max Travel Speed (Forward) 9.1 mph 10.5 mph (H range, Ag tires) Max Travel Speed (Reverse) 9.1 mph Not Published Differential Lock & Limited Slip Options Differential lock Yes; Limited slip differential No Differential lock ▶ Chassis, Steering & ControlsBrakes Wet disc (left-hand pedal) Wet disc, foot-operated Steering Power Power steering (hydrostatic) Frame Type Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive Sub-compact tractor; selectable 4WD Front Axle Type Four-wheel drive Not Published Front Axle Rating Front 1349 lb Not Published Seat Suspension & Adjustability Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt Not Published Drawbar Capacity n/a Not Published ▶ Dimensions & ManeuverabilityWheelbase 57.1 inches 57.1 in 66.1 in Overall Width 47 in 50.8 in Ground Clearance 7.7 in. 8.2 in Min. Turn Radius without Brakes 2.51 m 8.2 ft Not Published Overall Length n/a 92.5 in Height to Top of ROPS n/a 89.7 in Height to Top of Cab Model n/a Not Applicable Height to Top of ROPS (folded) n/a Not Published Overall Length with 3-Point Hitch n/a 104.0 in
