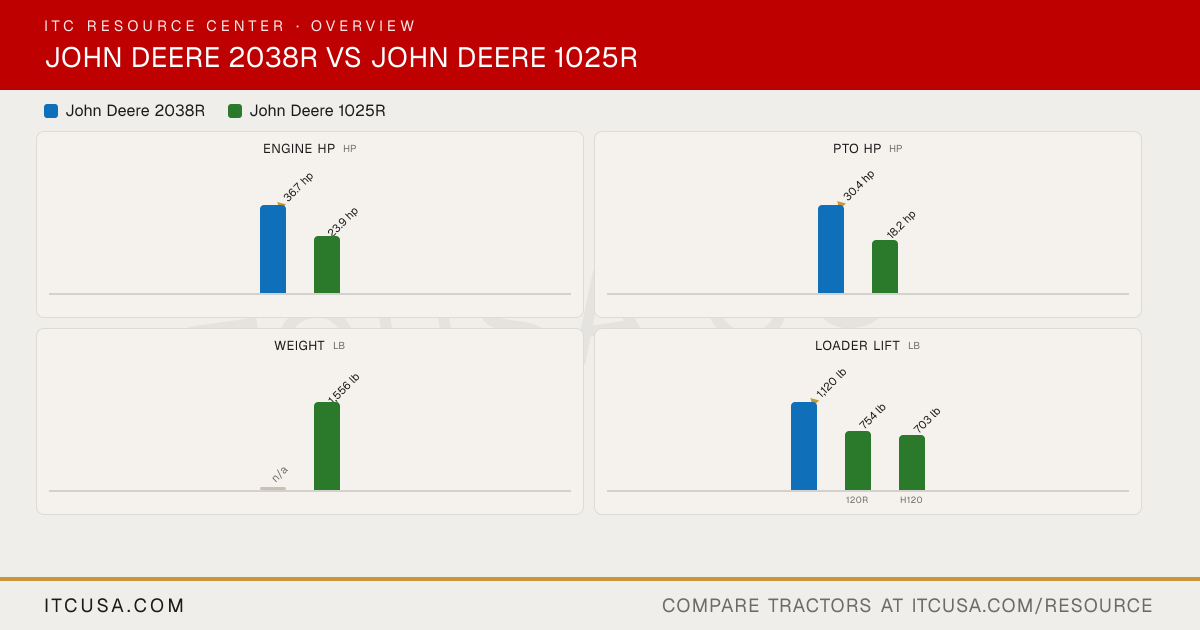

▶ EnginePTO Power 30.4 hp 18.2 hp Alternator 85 A, 12 V 40 A Air Cleaner Dual element Dual element with mechanical restriction indicator Engine Type Diesel, turbocharged Diesel Fuel System Direct fuel injection Indirect injection Displacement 95.7 in³ 77.3 in³ No. of Cylinders 3 3 Rated Engine Speed 2500 rpm 3200 rpm Cooling System Type Liquid-cooled Water pump Engine Manufacturer Yanmar Yanmar Engine Power (Gross) 36.7 hp @ 500 rpm 23.9 hp @ 200 rpm Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Published approx. 1,444 lb shipping weight open station (no loader); operating weight with loader approx. 1,556 lb shipping Weight with Cab and Loader Not Applicable approx. 1,996 lb shipping weight with cab Tractor Weight (Base) n/a Open station: 1556 lb ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 6-year / 2,000-hour powertrain warranty (standard); PowerGard extended warranty available ▶ HydraulicsPump Type Dual gear Single gear Steering Flow 3.9 gpm 3.5 gpm Implement Flow 5.2 gpm 3.5 gpm Total Hydraulic Flow 9.1 gpm 6.3 gpm 23.8 lpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 3.5 gpm per pump (implement circuit); total system output 6.3 gpm Overall Hydraulic Pump Flow 9.1 gpm 3.5 gpm 13.2 lpm No. of Optional Remote Valves Up to 3 Three No. of Standard Remote Valves Not Published n/a System Operating Pressure n/a 2000 psi ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent Independent Lift Control Type Position control position control Hitch Lift Capacity 1,356 lb 758 lb Mid-PTO Availability Standard 2100 rpm Category, 3-Point Hitch Category 1 Limited Category 1 Hitch Lift Capacity (at 24”) 1,356 lb 758 lb ▶ Tire OptionsR3 Turf - Rear 14-17.5 26x12-12 R3 Turf - Front 23X8.50-14 18x8.50-10 Tire Size & Options R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial Front: R3 Turf 18x8.50-10, R3 Turf Radial 18x8.50-10, R4 18x8.5-10 | Rear: R3 Turf 26x12-12, R4 26x12-12 R4 Industrial - Rear 14-17.5 26x12-12 R4 Industrial - Front 23X8.50-14 18x8.5-10 R1 Agricultural - Rear 12.4-16 26x12.00-12 (R4 Industrial standard; R1 Agricultural not a standard listed option) R1 Agricultural - Front 7.00-12 18x8.50-10 (R3 Turf / R4 Industrial listed; R1 Agricultural not a standard listed option) ▶ Fluid CapacityCoolant Capacity 1.37 gal 0.98 gal Crankcase Capacity 1.13 gal 0.71 gal Fuel Tank Capacity 8.5 gal 5.6 gal Front Axle Fluid Capacity 1.0 gal 0.74 gal Transmission / Hydraulic System Capacity 6.2 gal 3.3 gal ▶ Loader & AttachmentsLoader Lift Height 85 in 72 in to maximum height at pivot pin (120R loader) Loader Breakout Force 1,949 lbf (pivot) 120R: 1,823 lbf at pivot point; H120: 1,724 lbf at pivot point Quick Attach Loader System Quik-Park 120R Quik-Park Loader System Loader Lift Capacity (Full Height) 1,120 lb (pivot) 120R: 754 lb at pivot point to max height; H120: 703 lb at pivot point to max height ▶ Transmission & DrivetrainClutch Not Applicable wet disc No. of Speeds Infinite (2-range HST) Infinite (hydrostatic), 2-range (Hi/Lo) forward and reverse Transmission Type Hydrostatic (HST) hydrostatic Max Travel Speed (Forward) 15.3 mph 9.1 mph Max Travel Speed (Reverse) Not Published 9.1 mph Differential Lock & Limited Slip Options Differential lock: Yes; Limited slip: Not Published Differential lock Yes; Limited slip differential No ▶ Chassis, Steering & ControlsBrakes Wet disc Wet disc (left-hand pedal) Steering Power steering Power Frame Type Not Published Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive Front Axle Type 4WD (MFWD) Four-wheel drive Drawbar Capacity Not Published n/a Front Axle Rating 1,940 lb Front 1349 lb Seat Suspension & Adjustability Not Published Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt ▶ Dimensions & ManeuverabilityWheelbase 67.8 in 57.1 inches 57.1 in Overall Width 53.9 in 47 in Ground Clearance Not Published 7.7 in. Height to Top of ROPS 92.3 in n/a Height to Top of Cab Model Not Applicable n/a Height to Top of ROPS (folded) Not Published n/a Min. Turn Radius without Brakes Not Published 2.51 m 8.2 ft Overall Length with 3-Point Hitch 117.7 in n/a
