Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaBX2380

n/a

KubotaB2401

Comparison loaded for 2 tractors.

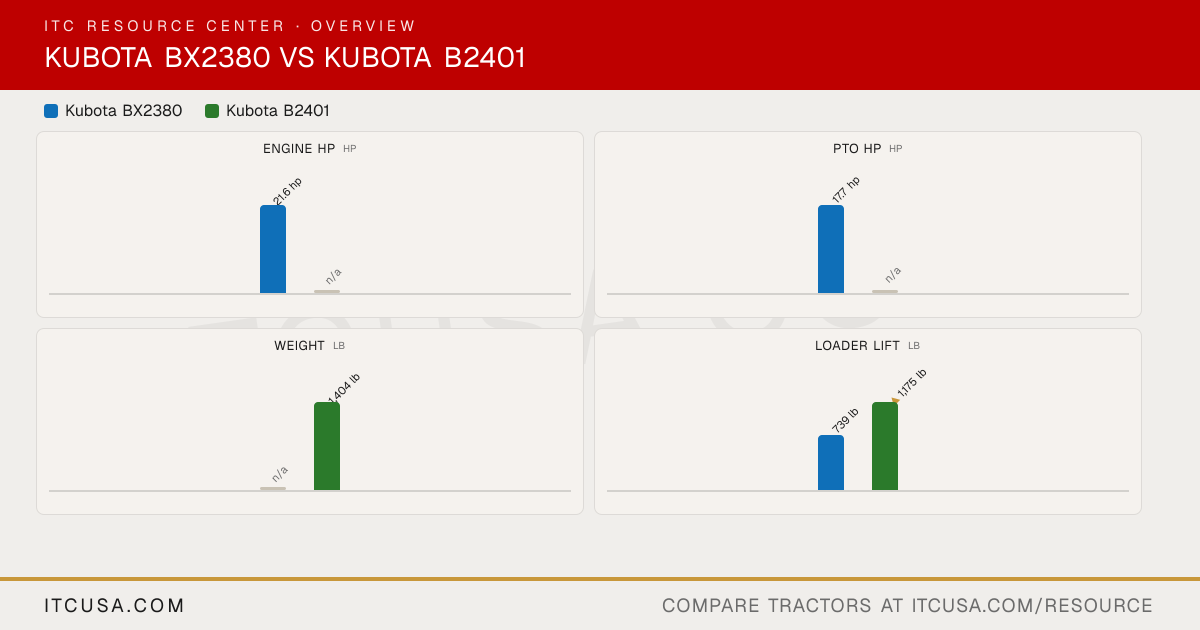

The headline numbers at a glance.

Kubota BX2380Kubota B2401

Engine HPhp

21.6 hp

n/a

PTO HPhp

17.7 hp

n/a

Weightlb

n/a

1,404 lb

Loader Liftlb

739 lb

▲1,175 lb

3-Pt Lift (24 in)lb

680 lb

n/a

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX2380	KubotaB2401


PTO Power	17.7 hp	19.2 (14.3) HP (kW)
Alternator	40 A, 12 V	40 A
Air Cleaner	Sheet net and replaceable treated paper element, spin on oil filter	Dual paper element
Engine Type	Liquid cooled, 4-cycle, diesel	E-TVCS, liquid cooled, 3-cylinder diesel
Fuel System	Direct injection	Radial air flow
Displacement	54.8 in³	68.5 (1123) cu. in. (cc)
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	2600 rpm
Cooling System Type	Water with pressurized radiator, reverse air-flow design	Liquid Cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	21.6 hp	21.9 (16.3) HP (kW)
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Published	1,521 lbs.
Weight with Cab and Loader	Not Applicable	n/a
Tractor Weight (Base)	n/a	1,404 lbs.

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Full warranty: 2 years / 2,000 hours; Powertrain warranty: 6 years / 2,000 hours

Pump Type	Open center tandem pump gear type	Dual pump
Steering Flow	1.0 gpm	2.6 gpm 9.8 lpm
Implement Flow	5.2 gpm	4.0 gpm
Total Hydraulic Flow	6.2 gpm	7.0 (26.4) gpm (ℓ/min.)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Front & Rear outlet
Overall Hydraulic Pump Flow	6.2 gpm	7.0 (26.4) gpm (ℓ/min.)
No. of Optional Remote Valves	2 (optional; ISO 7241-1 series A or B)	1
No. of Standard Remote Valves	Not Published	0
System Operating Pressure	n/a	2500 psi

PTO Rear	STD (540 rpm)	540, 1000 rpm
PTO Type	Live independent PTO (with hydraulic clutch)	Transmission driven with one way clutch
Lift Control Type	Not Published	Position control valve
Hitch Lift Capacity	Not Published	1653 (750) lbs. (kg)
Mid-PTO Availability	STD (2500 rpm)	2500 rpm
Category, 3-Point Hitch	SAE Category I Optional	Category I
Hitch Lift Capacity (at 24”)	680 lb	1808 (820) lbs. (kg); 1411 (640) lbs. (kg); 1290 (585) lbs. (kg)

R3 Turf - Rear	26X12-12	33x12.5-15
R3 Turf - Front	18X8.5-10	23x8.50-12
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	n/a
R4 Industrial - Rear	26X12-12	n/a
R4 Industrial - Front	18X8.5-10	n/a
R1 Agricultural - Rear	26X12-12	9.5-16
R1 Agricultural - Front	18X8.5-10	6-12

Coolant Capacity	Not Published	4.0 (3.8) qts. (ℓ)
Crankcase Capacity	Not Published	3.3 (3.1) qts. (ℓ)
Fuel Tank Capacity	6.6 gal	6.1 gal.
Front Axle Fluid Capacity	Not Published	n/a
Transmission / Hydraulic System Capacity	Not Published	3.3 (12.5) gal (ℓ)

Loader Lift Height	71.0 in	78.5"
Loader Breakout Force	1,286 lbf (bucket pivot pin)	2,146 lbf.
Quick Attach Loader System	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)	LA435 Swift-Tach Loader; 1-lever Quick Coupler (standard); 2-Lever Quick Coupler (optional)
Loader Lift Capacity (Full Height)	739 lb	1,175 lbs.

Clutch	Dry type single plate - Main clutch 9.45 in.	Dry single plate
No. of Speeds	2 Range (Low-High)	9 Forward, 3 Reverse
Transmission Type	Hydrostatic transmission	Gear (9 Forward, 3 Reverse)
Max Travel Speed (Forward)	8.1 mph	0-11.7 (0-18.8) mph (km/h)
Max Travel Speed (Reverse)	6.2 mph	0-6.0 (0-9.6) mph (km/h)
Differential Lock & Limited Slip Options	Rear differential lock standard	Standard

Brakes	Mechanical, wet disc type	Multi-plate wet disc
Steering	Integral power steering	Integral type power steering
Frame Type	Not Published	n/a
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Cast-iron front axle
Drawbar Capacity	Max. drawbar load @ hitch: 550 lb.	661.4 lb (660 lbs)
Front Axle Rating	Not Published	n/a
Seat Suspension & Adjustability	Not Published	High-back seat (absorbs shock); NOTE: Deluxe seat with armrests and seat suspension listed for HST models only - not explicitly confirmed for B2401 gear-drive (DT) in spec sheet

Wheelbase	55.1 in	61.4 (1560) in. (mm)
Overall Width	45.1 in	44.3 (1125) in. (mm)
Ground Clearance	6.5 in	12.0 (305) in. (mm)
Height to Top of ROPS	83.1 in	83.9 in.
Height to Top of Cab Model	Not Applicable	n/a
Height to Top of ROPS (folded)	Not Published	n/a
Min. Turn Radius without Brakes	7.5 ft (2.3 m)	6.9 (2.1) feet (m)
Overall Length with 3-Point Hitch	99.0 in (w/ Front guard)	93.9 in.
Overall Length	n/a	93.9 in / 93.9 in

Accessories that fit	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00
