Kubota LX2610 vs Case IH Farmall 25SC | Side-by-side comparison | ITC Resource Center
Compare Tractors

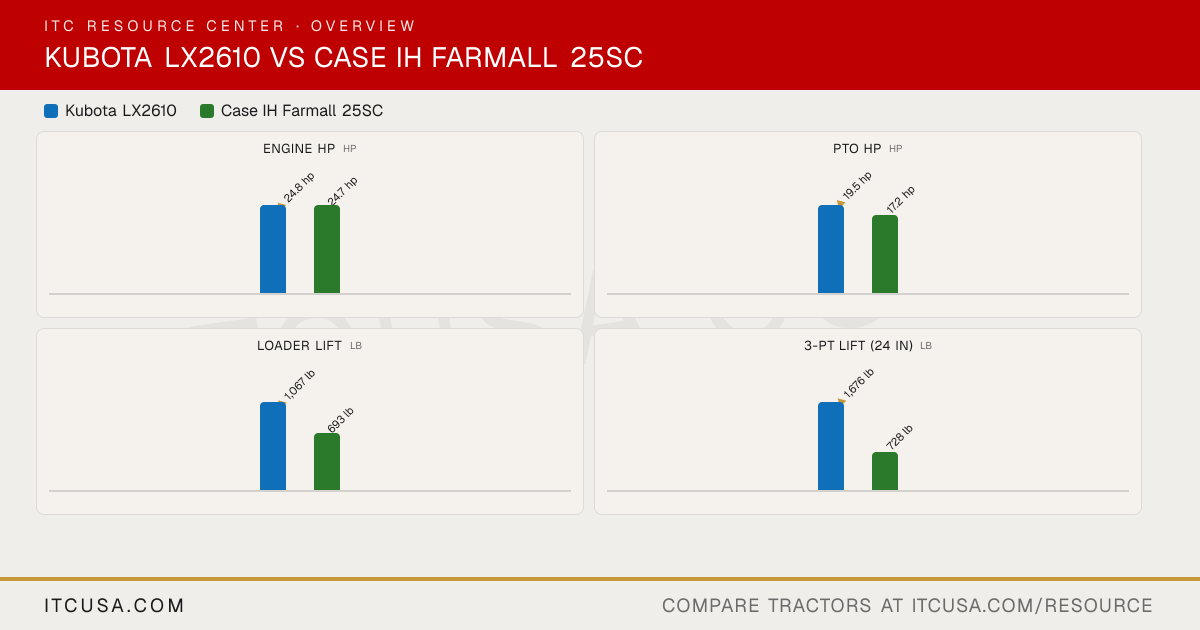

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX2610
Case IHFarmall 25SC
PTO Power
19.5 hp
17.2 hp
Alternator
Not Published
Not Published
Air Cleaner
4.5 inch Dual paper element
Not Published
Engine Type
E-TVCS, liquid cooled, 3-cylinder, diesel
Diesel, naturally aspirated
Fuel System
Not Published
Indirect injection
Displacement
77 in³
76.9 in³
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
3000 rpm
Cooling System Type
Pressurized radiator
Water-cooled
Engine Manufacturer
Kubota
Not Published
Engine Power (Gross)
24.8 hp
24.7 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Not Published
Pump Type
Dual pump
Not Published
Steering Flow
Not Published
Not Published
Implement Flow
Not Published
4.6 gpm
Total Hydraulic Flow
8.7 gpm
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
8.7 gpm
Not Published
No. of Optional Remote Valves
Not Published
1
No. of Standard Remote Valves
Not Published
0
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent electro-hydraulic engagement; Mid-PTO: standard (2,500 rpm)
Lift Control Type
Position control valve
Not Published
Hitch Lift Capacity
2139 lb
992 lb
Mid-PTO Availability
2500 rpm
Standard
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity (at 24”)
1676 lb
728 lb @ 24 in behind ball ends
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Not Published
R4 Industrial - Rear
12.4-16 / 15-19.5
Not Published
R4 Industrial - Front
23X8.50-14 / 25X8.50-14
Not Published
R1 Agricultural - Rear
12.4-16
Not Published
R1 Agricultural - Front
7.0-12
Not Published
Coolant Capacity
4.5 qt
Not Published
Crankcase Capacity
4.2 qt
Not Published
Fuel Tank Capacity
7.1 gal
6.6 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
4.0 gal
Not Published
Loader Lift Height
84 in
Up to 72 in
Loader Breakout Force
2245 lb
Up to 1,426 lb
Quick Attach Loader System
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
