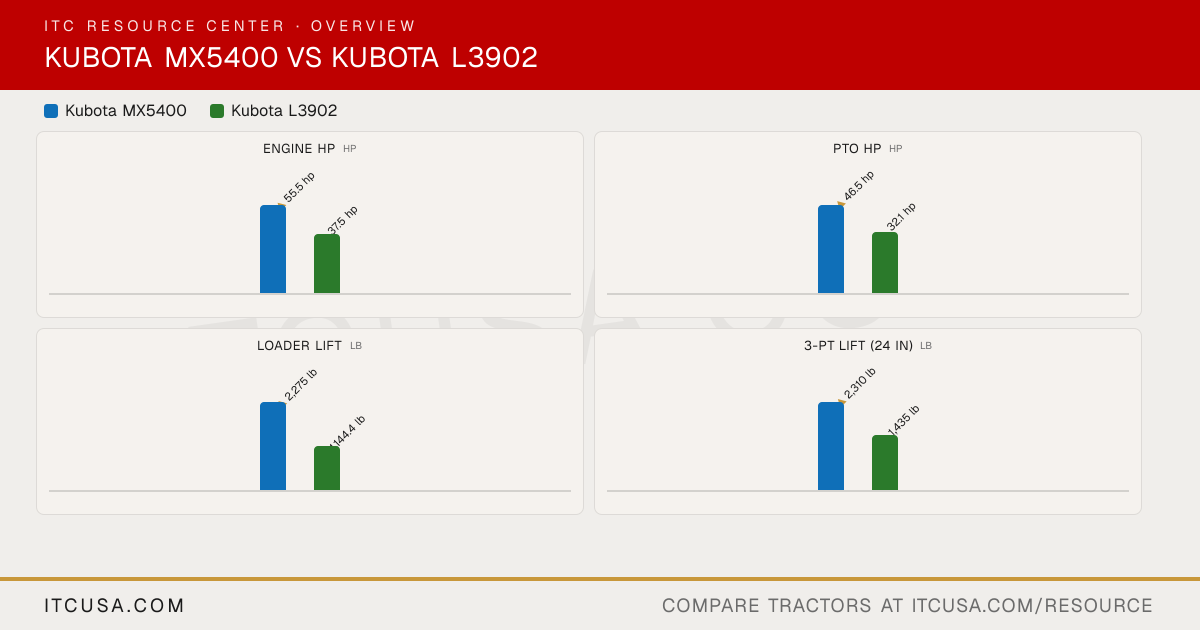

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V2403CR-T D1803-CR-E5 Engine Type Liquid-cooled, diesel, 4-cylinder, Turbocharged Direct injection, vertical, water-cooled 4-cycle, diesel No. of Cylinders 4 3 Displacement 148.6 in³ 111.4 in³ Rated Engine Speed 2700 rpm 2700 rpm Engine Power (Gross) 57 hp 37.5 hp PTO Power 46.5 hp 30.3 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry-dual element Dry type, single element Fuel System Common Rail System (CRS), direct injection Direct injection Alternator 45 A, 12 V 45 A, 12 V ▶ HydraulicsPump Type Gear Not Published Implement Flow 9.5 gpm 6.3 gpm Steering Flow 4.9 gpm 3.8 gpm Total Hydraulic Flow 14.4 gpm (9.5 + 4.9, computed) 10.1 gpm (6.3 + 3.8, computed) Overall Hydraulic Pump Flow 14.4 gpm (9.5 + 4.9, computed) 10.1 gpm (6.3 + 3.8, computed) Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Maximum 3 (opt) Not Published ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 11.1 gal Coolant Capacity 6.9 qt 6.3 qt Crankcase Capacity 7.4 qt 7.1 qt Transmission / Hydraulic System Capacity 11.6 gal 6.9 gal Front Axle Fluid Capacity 8.9 qt 4.8 qt ▶ PTO & HitchPTO Type Live independent, hydraulic PTO with PTO brake, wet clutch Live independent PTO with hydraulic clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch I & II SAE Category I Hitch Lift Capacity 2,870 lb 1,998 lb Hitch Lift Capacity (at 24”) 2,310 lb 1,435 lb Lift Control Type Position (std), Draft (opt) Position control ▶ Transmission & DrivetrainTransmission Type 3-range hydrostatic (HST) Hydrostatic transmission (3-range) No. of Speeds 3-range 3-range Max Travel Speed (Forward) DT (2WD/4WD): 17.3 mph; HST (4WD): 17.7 mph 14.1 mph Max Travel Speed (Reverse) DT (2WD/4WD): 15.9 mph; HST (4WD): 16.0 mph 12.7 mph Clutch No clutch Not Applicable Differential Lock & Limited Slip Options Rear differential lock standard (mechanical) Rear differential lock, pedal operated ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Integral type power steering Brakes Mechanical wet disc Mechanical, wet disc type Seat Suspension & Adjustability High-back suspension seat (optional arm rests) Suspension seat with fore/aft travel adjustment and suspension tension adjustment Front Axle Type Bevel gear type (4WD) Cast-iron front axle Front Axle Rating Not Published Not Published Drawbar Capacity 1,650 lb 730 lb ▶ Dimensions & ManeuverabilityOverall Width 69.7 in 55.1 in Wheelbase 74.6 in 63.4 in Ground Clearance 15.2 in 13.4 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) 8.2 ft (with brake applied) Height to Top of ROPS 95.7 in 91.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Applicable Not Published Overall Length 125.9 in (without 3-point hitch) 108.7 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 3,734 lb (with ROPS) 2,778 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard ag: 9.5-16 / 14.9-26 Agricultural; Turf; Industrial (R4) R1 Agricultural - Front 9.5-16 7.2-16 R1 Agricultural - Rear 14.9-26 11.2-24 R3 Turf - Front Not Published 25X8.50-14 R3 Turf - Rear Not Published 13.6-16 R4 Industrial - Front Not Published 27X8.50-15 R4 Industrial - Rear Not Published 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System 1065A: 2-Lever Quick Coupler for Loader Attachment Front Loader (LA526 - 2 Lever Quick Coupler (OPT)) Loader Model LA1065 LA526 Loader Lift Height 111.2 in (at pivot pin) 94.8 in (at pivot pin) Loader Lift Capacity (Full Height) 2,275 lb (at pivot pin) 1,144 lb (at pivot pin, max. height) Loader Breakout Force 3,102 lbf Not Published ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 2,000 hours, powertrain 72 months or 3,000 hours; commercial: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit
