Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

Mahindra1626Shuttle

n/a

KubotaL2501

Comparison loaded for 2 tractors.

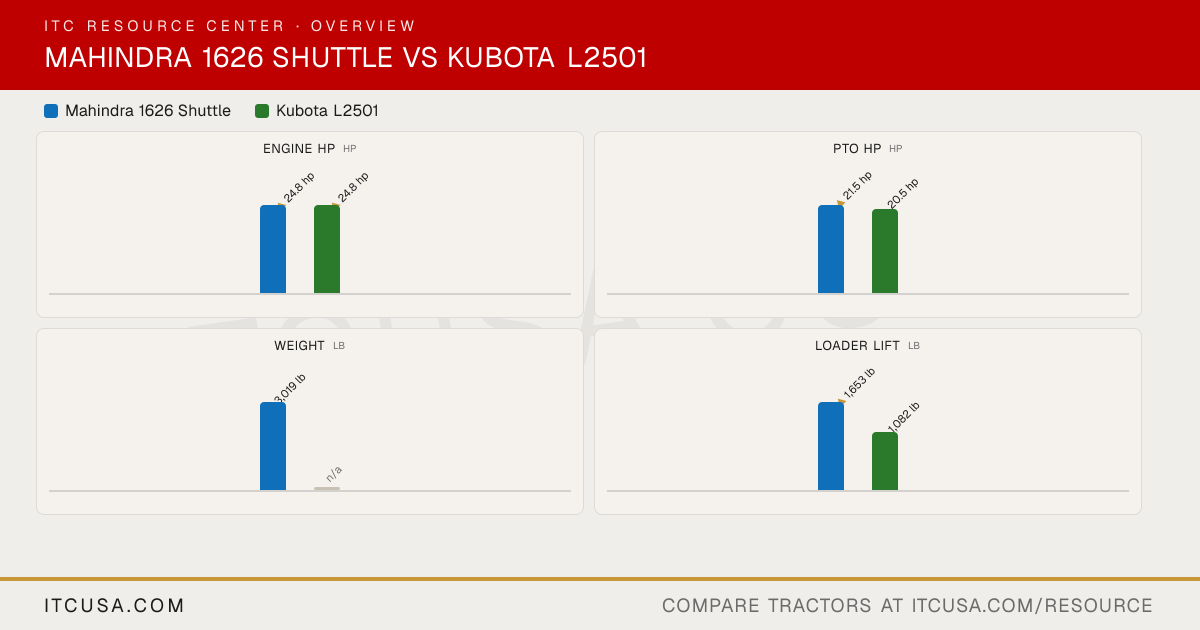

The headline numbers at a glance.

Mahindra 1626 ShuttleKubota L2501

Engine HPhp

▲24.8 hp

PTO HPhp

▲21.5 hp

20.5 hp

Weightlb

3,019 lb

n/a

Loader Liftlb

▲1,653 lb

1,082 lb

3-Pt Lift (24 in)lb

▲1,720 lb

1,389 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1626 Shuttle	KubotaL2501


PTO Power	21.5 hp	20.5 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel	Direct injection, vertical, water-cooled, 4-cycle, diesel
Fuel System	Indirect Injection	Direct injection
Displacement	80.4 in³	100.5 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2200 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Mitsubishi	Kubota
Engine Power (Gross)	24.8 hp @ 500 rpm	24.8 hp
Engine Emissions Constraints	DOC / No DPF	Tier 4

Weight with ROPS and Loader	3019 lb	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Not Published
Steering Flow	3.3 gpm	3.13 gpm
Implement Flow	7.5 gpm	5.15 gpm
Total Hydraulic Flow	10.8 gpm	8.28 gpm
Hydraulic System Type	Open Center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	10.8 gpm	8.28 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm @ 2376 rpm	540 rpm
PTO Type	Independent	DT (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running
Lift Control Type	Position Control	Not Published
Hitch Lift Capacity	2646 lb	1918 lb
Mid-PTO Availability	Optional; 2000 @ 2526 rpm	Not Published
Category, 3-Point Hitch	CAT I with Telescoping Stabilizers	Not Published
Hitch Lift Capacity (at 24”)	1720 lb	1389 lb

R3 Turf - Rear	13.6X16	Not Applicable
R3 Turf - Front	25X8.5-14	Not Applicable
Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	R1 Agricultural; R4 Industrial
R4 Industrial - Rear	15X19.5	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5
R4 Industrial - Front	27X8.5-15	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15
R1 Agricultural - Rear	11.2X24	11.2-24
R1 Agricultural - Front	7X16	DT (2WD): 5-15; DT (4WD), HST (4WD): 7.2-16

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	7.1 gal	10.0 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	84 in	94.3 in
Loader Breakout Force	2557 lb	2373 lbf
Quick Attach Loader System	429.5 gal: Front loader with skid-steer couplers for superfast hookups.	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Lift Capacity (Full Height)	1653 lb	1082 lb

Clutch	Dry-Single	DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable
No. of Speeds	8F / 8R	DT (2WD), DT (4WD): 8 forward, 4 reverse; HST (4WD): 3-range
Transmission Type	Constant mesh on gearshift and synchromesh on F-R shuttle	DT (2WD), DT (4WD): Gear shift; HST (4WD): Hydrostatic transmission (3-range)
Max Travel Speed (Forward)	11.4 mph	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph
Max Travel Speed (Reverse)	Not Published	DT (2WD), DT (4WD): 3.9 mph; HST (4WD): 10.3 mph
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet Disc	Wet disc type
Steering	Hydrostatic Power Steering	Integral type power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	67.3 in	63.3 in
Overall Width	63.0 in	55.1 in
Ground Clearance	11.4 in	DT (2WD): 13.6 in; DT (4WD), HST (4WD): 13.4 in
Height to Top of ROPS	81.5 in	91.7 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	121.3 in	DT (2WD): 110.6 in; DT (4WD), HST (4WD): 106.3 in

Accessories that fit	Mahindra 1626 Brush Screen Insert $249.99	Kubota Standard L & MX Series Brush Guard Insert Kit $269.00
