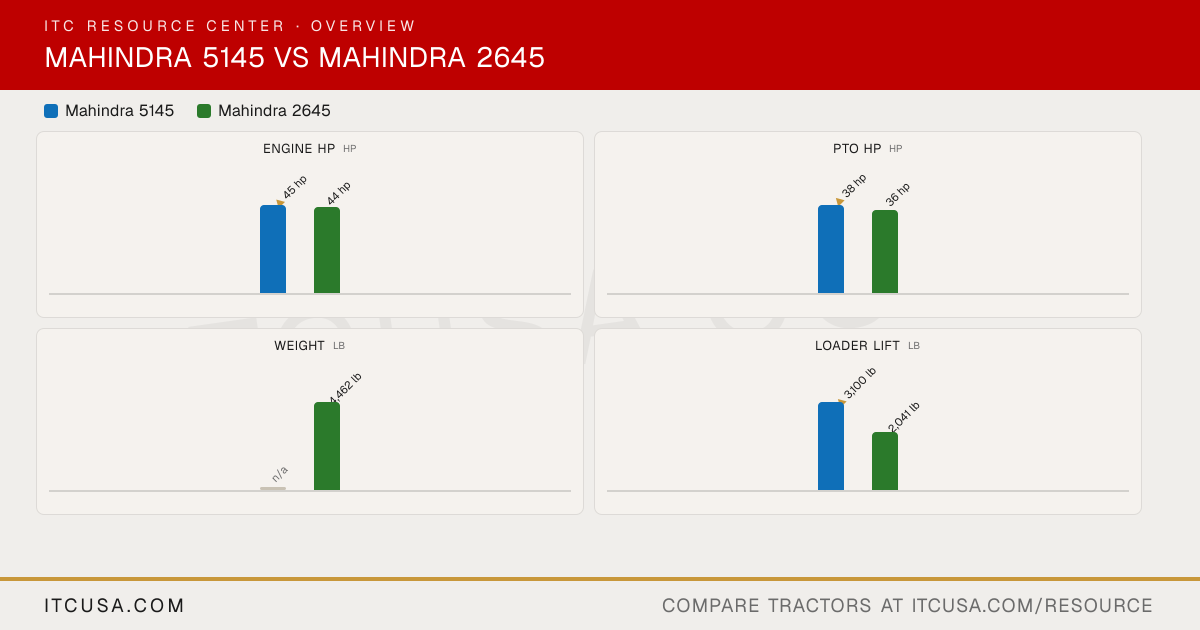

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model DH45 CE-45 Engine Type Four-stroke, naturally aspirated, direct injection, water-cooled diesel Four-stroke, naturally aspirated, direct injection, water cooled diesel No. of Cylinders 4 4 Displacement 166.2 in³ 166.7 in³ Rated Engine Speed 2300 rpm 2600 rpm Engine Power (Gross) 45 hp 44 hp PTO Power 38 hp 36 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Water-cooled Air Cleaner Not Published Dry dual element Fuel System Direct injection Direct Injection (mCRD fuel-injected) Alternator 55 A 90 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 8.71 gpm 8.2 gpm Steering Flow 4.62 gpm ROPS: 4.1 gpm; Cab: 4.5 gpm Total Hydraulic Flow 13.3 gpm 12.7 gpm Overall Hydraulic Pump Flow 13.3 gpm 12.7 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves One Not Published No. of Optional Remote Valves One (optional second rear valve) 1 (optional) ▶ Fluid CapacityFuel Tank Capacity 17.1 gal 9 gal Coolant Capacity Not Published 1.85 gal Crankcase Capacity Not Published 1.98 gal Transmission / Hydraulic System Capacity Not Published 9.25 gal Front Axle Fluid Capacity Not Published 2.17 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm 540 rpm @ 2650 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I & II with telescopic stabilizers & flex links CAT I Hitch Lift Capacity Not Published 2,646 lb Hitch Lift Capacity (at 24”) 3,748 lb Not Published Lift Control Type Position control Position Control ▶ Transmission & DrivetrainTransmission Type Full synchromesh with forward/reverse synchro shuttle and constant-mesh range Sync, shuttle with part synchromesh No. of Speeds 12F / 12R 12F / 12R Max Travel Speed (Forward) 17.9 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dual dry with cerametallic lining Dry single plate Differential Lock & Limited Slip Options Not Published Bevel gears with diff-lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering with tilt steering wheel Power steering Brakes Fully-enclosed, 7-in diameter, dry disc Wet Disc Brake, Mechanical Seat Suspension & Adjustability Adjustable seat with contoured cushions, armrests and a soft-coil suspension Seat with mechanical suspension, adjustable headrest, folding armrests Front Axle Type Not Published Center pin Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 74.8 in 63.2 in Wheelbase 77.9 in 67.7 in Ground Clearance 15.2 in 14.5 in Min. Turn Radius without Brakes 10.8 ft (3.29 m) Not Published Height to Top of ROPS Not Published 94.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 136.6 in 119.3 in ▶ WeightTractor Weight (Base) 5,390 lb 3,285 lb Weight with ROPS and Loader 6,690 lb 4,462 lb (3,285 + 1,177, computed; 698.7 gal loader shipping weight) Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural or R4 Industrial R1 Agricultural, R4 Industrial R1 Agricultural - Front 9.5 x 20 8.3x16 R1 Agricultural - Rear 14.9 x 28 12.4x24 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 10.5/80 x 18 10-16.5 R4 Industrial - Rear 16.9 x 24 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style quick-attach coupler 2645L: quick-attach adapter included Loader Model 5155-4L (front loader); 65B (rear backhoe) 2645L (66 in bucket) Loader Lift Height 122 in 2645L: 101.9 in Loader Lift Capacity (Full Height) 3,100 lb 2645L: 2,041 lb (at pivot pin) Loader Breakout Force 5,200 lb 2645L: 3,430 lb ▶ WarrantyWarranty Length & Coverage 5-year limited powertrain warranty Not Published
