TYM 2610 vs Solis S24 Shuttle XL | Side-by-side comparison | ITC Resource Center
Compare Tractors

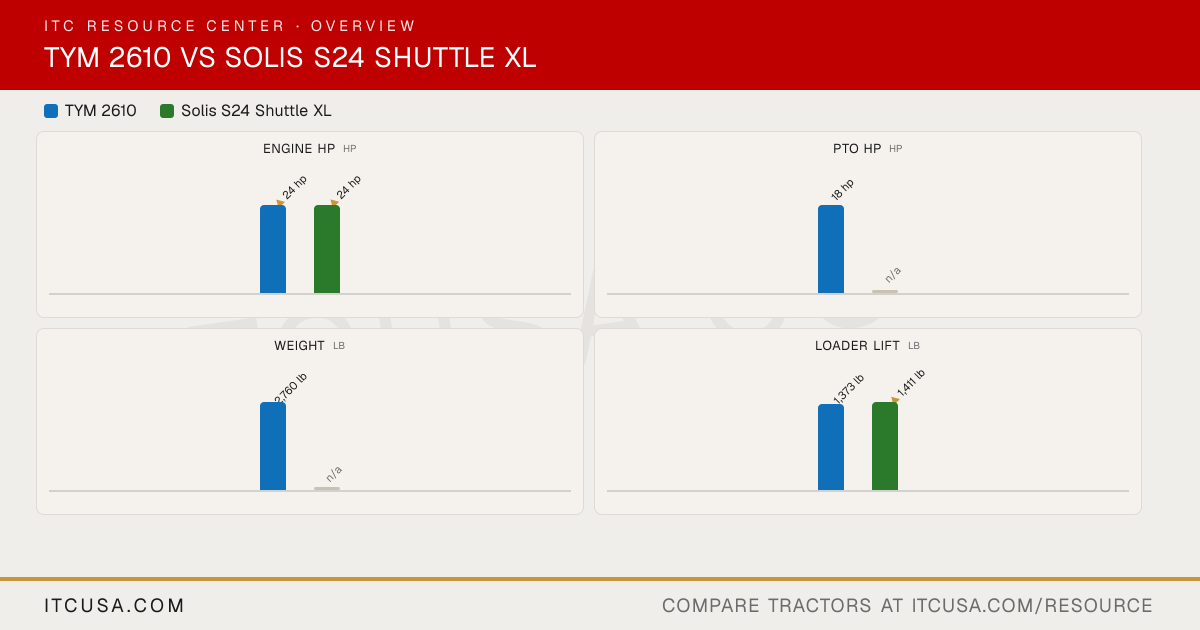

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM2610
SolisS24 Shuttle XL
PTO Power
18 hp
Not Published
Alternator
60 A, 12 V
Not Published
Air Cleaner
Dry element
Not Published
Engine Type
3-cylinder, naturally aspirated diesel
Natural Aspiration
Fuel System
IDI
Not Published
Displacement
71.7 in³
80.4 in³
No. of Cylinders
3
3
Rated Engine Speed
2800 rpm
2500 rpm
Cooling System Type
liquid-cooled
Not Published
Engine Manufacturer
TYM
Mitsubishi
Engine Power (Gross)
24 hp
24 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
2,760 lb
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
3-year warranty; 7-year limited powertrain
Pump Type
Single Gear Pump
Not Published
Steering Flow
4.3 gpm | 16.2 l/min
Not Published
Implement Flow
3.1 gpm | 11.7 l/min
Not Published
Total Hydraulic Flow
7.4 gpm | 28 l/min
6.5 gpm
Hydraulic System Type
open center
Not Published
Rear Remote Hydraulic Flow
3.1 gpm 11.7 lpm
Not Published
Overall Hydraulic Pump Flow
Total: 7.9 gpm [Implement: 4.65 gpm | Steering: 3.3 gpm] - Note: older/dealer spec sheets also cite 7.4 gpm total; 7.9 gpm appears on 2025 model listing
Skid Steer style quick attach; BL110S loader with skid steer quick attach bucket (50" standard bucket)
XB24 (MSL)
Loader Lift Capacity (Full Height)
1373 lb | 1,373.5 lbf
1,411 lb
Clutch
Dry Single Plate
Not Published
No. of Speeds
3-Range
9F+9R
Transmission Type
HST
Constant Mesh with Synchromesh Shuttle transmission
Max Travel Speed (Forward)
17 mph | 27.3 kmph
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source
Brakes
Wet, Multi-disc
Oil immersed brakes; mechanical, foot operated
Steering
Hydrostatic
Power steering
Frame Type
Not Published
Not Published
Front Axle Type
Four-wheel drive
4WD
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Comfortable suspension seat
Not Published
Wheelbase
65.7 in. | 65.7 in
61.8 in
Overall Width
53.8 in. | 53.9 in
47.83 in
Ground Clearance
15.1 in. | 15 in
9.44 in
Height to Top of ROPS
91.5 in. | 91.7 in
91.53 in
Height to Top of Cab Model
Not Applicable
Not Applicable
Height to Top of ROPS (folded)
Not specified in searched sources; ROPS is confirmed foldable but folded height not published
