TYM T254 vs TYM 2610 | Side-by-side comparison | ITC Resource Center
Compare Tractors

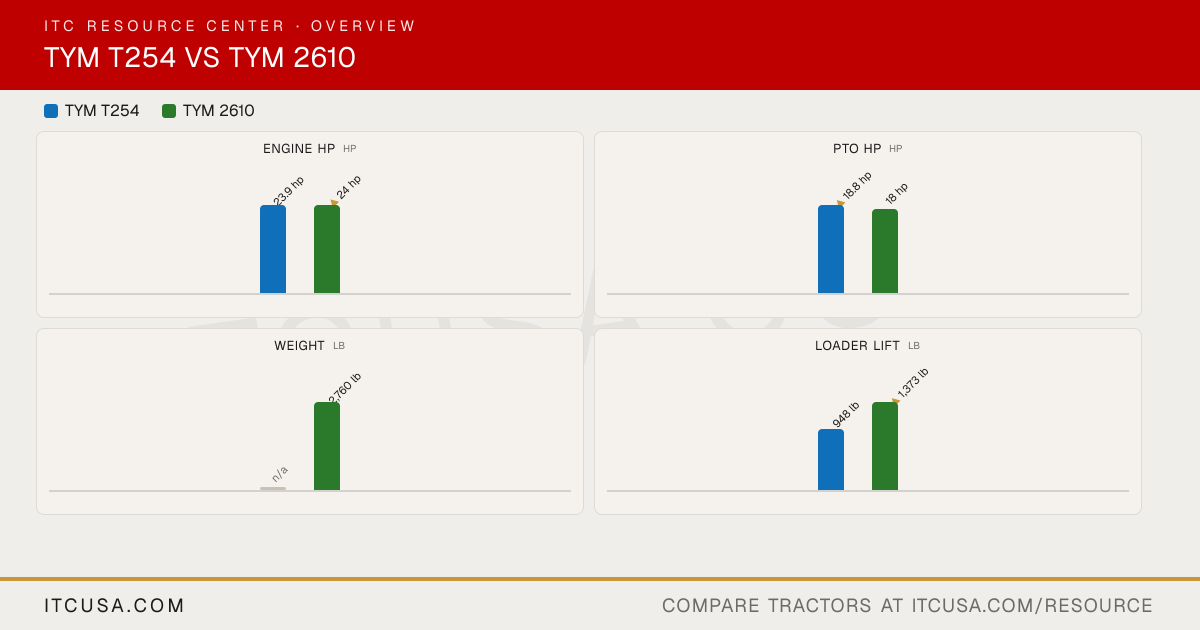

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT254
TYM2610
PTO Power
18.8 hp
18 hp
Alternator
40 A, 12 V
60 A, 12 V
Air Cleaner
Single dry
Dry element
Engine Type
3-cylinder, naturally aspirated diesel
3-cylinder, naturally aspirated diesel
Fuel System
IDI
IDI
Displacement
77.3 in³
71.7 in³
No. of Cylinders
3
3
Rated Engine Speed
3000 rpm
2800 rpm
Cooling System Type
Water-cooled
liquid-cooled
Engine Manufacturer
Yanmar
TYM
Engine Power (Gross)
23.9 hp
24 hp
Engine Emissions Constraints
Tier 4
Tier 4
Weight with ROPS and Loader
Not Published
2,760 lb
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Single gear pump
Single Gear Pump
Steering Flow
2.8 gpm
4.3 gpm | 16.2 l/min
Implement Flow
4.2 gpm
3.1 gpm | 11.7 l/min
Total Hydraulic Flow
6.9 gpm
7.4 gpm | 28 l/min
Hydraulic System Type
Open center
open center
Rear Remote Hydraulic Flow
Not Published
3.1 gpm 11.7 lpm
Overall Hydraulic Pump Flow
6.9 gpm
Total: 7.9 gpm [Implement: 4.65 gpm | Steering: 3.3 gpm] - Note: older/dealer spec sheets also cite 7.4 gpm total; 7.9 gpm appears on 2025 model listing
No. of Optional Remote Valves
1
Optional (2)
No. of Standard Remote Valves
0
0
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Live
Lift Control Type
Position control
Position
Hitch Lift Capacity
1,214 lb
1499 lb | 1,499.1 lb
Mid-PTO Availability
Available
Mid-PTO available; 2,500 RPM mid-mount PTO option
Category, 3-Point Hitch
Category I (Narrow)
I
Hitch Lift Capacity (at 24”)
1,101 lb
974 lb
R3 Turf - Rear
29x12.50-15
33x12.50-16.5
R3 Turf - Front
20x8.00-10
23x8.50-12
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
