John Deere 1023E vs John Deere 3043D

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the John Deere 3043D leads 7 categories to 0. Machine pages: John Deere 1023E and John Deere 3043D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 1023E	John Deere 3043D
Engine HP (hp)	21.5 hp	▲ 41.6 hp
PTO HP (hp)	16.2 hp	▲ 36.3 hp
Weight (lb)	1,446 lb	n/a
Loader Lift (lb)	570 lb	▲ 1,186 lb
3-Pt Lift (24 in) (lb)	758 lb	▲ 2,081.2 lb
Lift Height (in)	71.2 in	▲ 84 in
Breakout Force (lbf)	n/a	1,704 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 10.3 gpm
Travel Speed (mph)	9.1 mph	▲ 12.9 mph

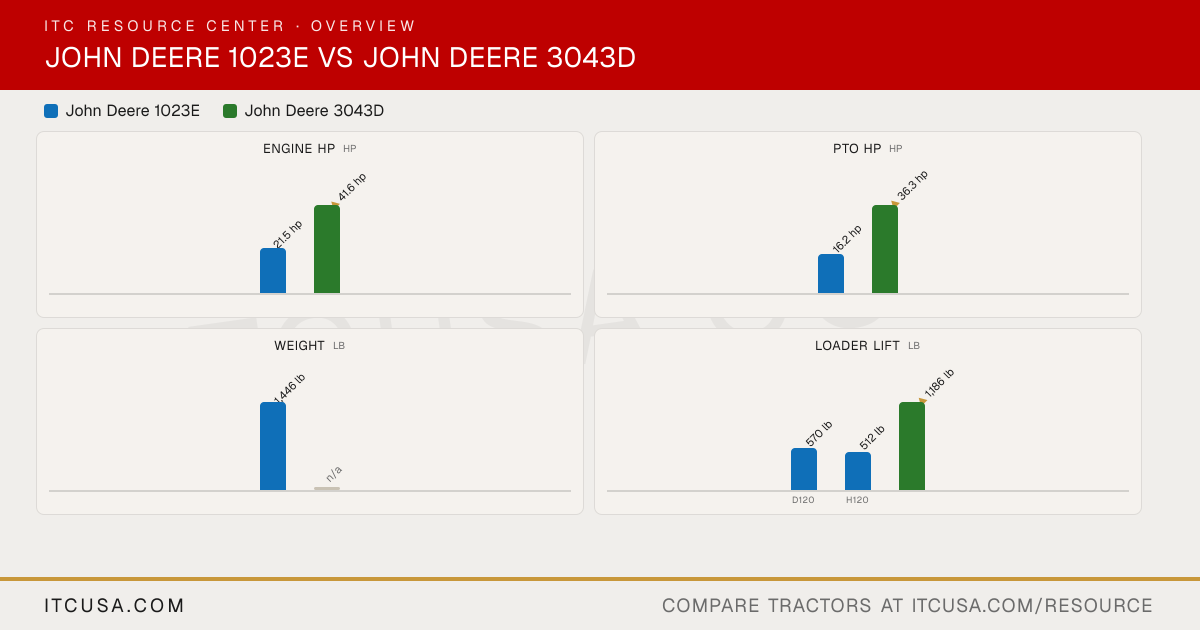

The headline numbers at a glance.

John Deere 1023EJohn Deere 3043D

Engine HPhp

21.5 hp

▲41.6 hp

PTO HPhp

16.2 hp

▲36.3 hp

Weightlb

1,446 lb

n/a

Loader Liftlb

570 lb

512 lb

▲1,186 lb

D120H120

3-Pt Lift (24 in)lb

758 lb

▲2,081.2 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1023E	John Deere3043D


PTO Power	16.2 hp	36.3 hp
Alternator	40 A	55 A, 12 V
Air Cleaner	Dual element	Dual element
Engine Type	Diesel	Turbocharged diesel; high pressure common rail direct injection
Fuel System	Indirect injection	High pressure common rail direct injection
Displacement	60.6 in³	95.8 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	2800 rpm
Cooling System Type	Water pump	Liquid
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	21.5 hp @ 200 rpm	41.6 hp @ 800 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Tractor Weight (Base)	Open station: 1446 lb	n/a
Weight with ROPS and Loader	1446 lb	Not Published
Weight with Cab and Loader	n/a	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty (as stated in 2016 review; current terms may vary)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Single gear	Single gear
Steering Flow	3.5 gpm	4.4 gpm
Implement Flow	3.5 gpm	5.9 gpm
Total Hydraulic Flow	6.3 gpm 23.8 lpm	10.3 gpm
Hydraulic System Type	Open center	Open center
System Operating Pressure	2000 PSI	n/a
Rear Remote Hydraulic Flow	3.5 gpm (13.3 lpm) implement circuit	Not Published
Overall Hydraulic Pump Flow	6.3 gpm total (2.8 gpm steering + 3.5 gpm implement)	10.3 gpm
No. of Optional Remote Valves	1 additional (optional 3rd SCV kit; standard is 2 mid-SCVs)	Up to 2 (optional)
No. of Standard Remote Valves	n/a	0

PTO Rear	540 rpm	540 rpm @ 2400 engine rpm
PTO Type	independent	Transmission
Lift Control Type	Position control (rockshaft lever)	Position control
Hitch Lift Capacity	1,433 lbs 1,433 lb	2081.2 lb
Mid-PTO Availability	2100 rpm	Not Published
Category, 3-Point Hitch	Limited Category 1	Category 1
Hitch Lift Capacity (at 24”)	758 lb	2081.2 lb

R3 Turf - Rear	26x12-12	41X14-20
R3 Turf - Front	18x8.50-10	27X8.50-15
R4 Industrial - Rear	26x12-12	15-19.5
R4 Industrial - Front	18x8.5-10	25X8.50-14
R1 Agricultural - Rear	26x12-12	11.2-24
R1 Agricultural - Front	18x8.5-10	7-14
Tire Size & Options	n/a	R1 Bar, R3 Turf, R4 Industrial

Coolant Capacity	0.98 gal	Not Published
Crankcase Capacity	0.71 gal	1.2 gal
Fuel Tank Capacity	5.6 gal	9.7 gal
Front Axle Fluid Capacity	0.74 gal	Not Published
Transmission / Hydraulic System Capacity	3.3 gal	8.7 gal

Loader Lift Height	71.2 in (D120 and H120 loaders)	84.0 in
Quick Attach Loader System	Quik-Park Loader System	Quick-change attachment carrier
Loader Lift Capacity (Full Height)	D120: 570 lb; H120: 512 lb (at full height, 71.2 in)	1186 lb
Loader Breakout Force	n/a	1704 lb

Clutch	Wet disk	Single dry traction (mechanical)
No. of Speeds	Infinite (hydrostatic, 2-range)	8F/8R
Transmission Type	Hydrostatic - two range	8F/8R synchromesh shuttle shift gear transmission
Max Travel Speed (Forward)	9.1 mph	12.9 mph
Max Travel Speed (Reverse)	9.1 mph	13.5 mph
Differential Lock & Limited Slip Options	Differential lock Yes; Limited slip differential No	Differential lock: Yes

Brakes	Wet disc (left-hand pedal)	Wet disk
Steering	Power	Power steering
Frame Type	Open center frame with two-post foldable ROPS	Not Published
Front Axle Type	MFWD (Mechanical Front-Wheel Drive) 4WD	4WD
Front Axle Rating	1349 lb	1940 lb
Seat Suspension & Adjustability	Spring suspension seat, adjusts fore/aft	Not Published
Drawbar Capacity	n/a	Not Published

Wheelbase	57.1 in.	62.0 in
Overall Width	47.2 in with R3 tires; 47.3 in with R4 tires	57.3 in
Ground Clearance	7.7 in.	13.0-13.9 in (331-13.9 in)
Height to Top of ROPS	78.6 in	Not Published
Min. Turn Radius without Brakes	2.51 m 8.2 ft	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	87.6 in	111.2 in
Height to Top of Cab Model	n/a	Not Applicable
Height to Top of ROPS (folded)	n/a	Not Published
