John Deere 3046R vs TYM T474

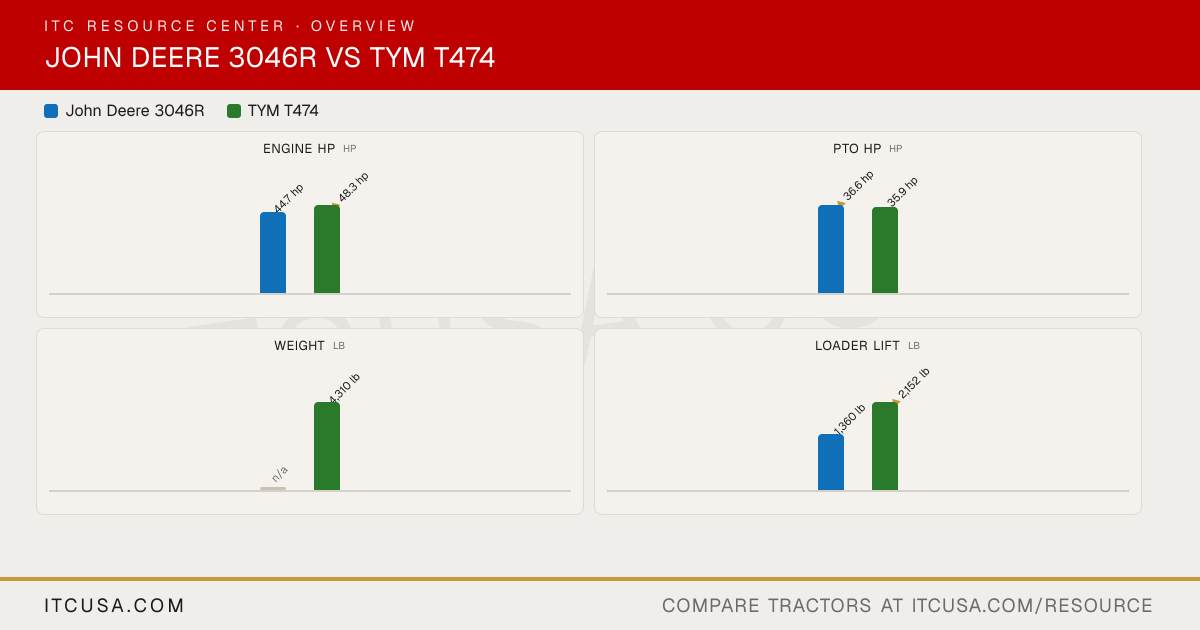

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the John Deere 3046R, 4 to the TYM T474. Machine pages: John Deere 3046R and TYM T474.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3046R	TYMT474

▶Engine
PTO Power	36.6 hp	35.9 hp
Alternator	75 A, 12 V	70 A, 12 V
Air Cleaner	Dry type with safety element (dual element)	Single dry
Engine Type	Diesel	4-cylinder, naturally aspirated diesel
Fuel System	High pressure common rail direct injection (HPCR)	IDI
Displacement	97.6 in³	139.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid (water pump)	Not Published
Engine Manufacturer	Yanmar	TYM
Engine Power (Gross)	44.7 hp @ 600 rpm	48.3 hp
Engine Emissions Constraints	Tier 4	Stage V
▶Weight
Weight with ROPS and Loader	Not Published	4,310 lb
Weight with Cab and Loader	Not Published	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	PV axial piston (hydrostatic pump); dual gear (implement and steering pump)	Dual gear pump
Steering Flow	5.9 gpm	4.2 gpm
Implement Flow	8.6 gpm	7.7 gpm
Total Hydraulic Flow	14.4 gpm	11.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.4 gpm	11.9 gpm
No. of Optional Remote Valves	Up to 6 rear remotes	Not Published
No. of Standard Remote Valves	Not Published	1
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	2,530 lb at hitch ball	2,689.6 lb
Mid-PTO Availability	Optional (2100 rpm)	Available (Mid-PTO kit)
Category, 3-Point Hitch	Limited Category 1	Category I
Hitch Lift Capacity (at 24”)	2,194 lb at 24 in behind link arms	1,764 lb
▶Tire Options
R3 Turf - Rear	41X14-20	12.5x20
R3 Turf - Front	27X8.50-15	Multi-Trac CS 27x10.5-15 NHS TL 4PR
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5 or 43X16-20	Xtra Grip 43x16.00-20 NHS TL 6PR
R4 Industrial - Front	25X8.5-14 or 27X8.5-15	Trac Chief 10-16.50 NHS TL 6PR
R1 Agricultural - Rear	11.2-24	Farm Specialist 12.4-24 NHS TL 6PR
R1 Agricultural - Front	7-14	Farm Specialist 8.0-16 NHS TL 6PR
▶Fluid Capacity
Coolant Capacity	Open station (OOS): 1.4 gal; Cab: 1.9 gal	6.9 qt
Crankcase Capacity	1.5 gal (with filter)	6.8 qt
Fuel Tank Capacity	Open station (OOS): 13.5 gal; Cab: 11.8 gal	9.0 gal
Front Axle Fluid Capacity	1.3 gal	8.7 qt
Transmission / Hydraulic System Capacity	6.8 gal	8.5 gal
▶Loader & Attachments
Loader Lift Height	90 in	105.6 in
Loader Breakout Force	2,855 lb at pivot; 2,032 lb @ 19.7 in	3,198 lb
Quick Attach Loader System	Quik-Park mounting system	TX47: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot	2,152 lb
▶Transmission & Drivetrain
Clutch	Not Applicable	Dry single plate
No. of Speeds	Infinite / 3 range	F12 x R12
Transmission Type	3-range hydrostatic (eHydro)	Mechanical
Max Travel Speed (Forward)	18.50 mph	14.9 mph
Max Travel Speed (Reverse)	18.50 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock; Limited slip differential	Not Published
▶Chassis, Steering & Controls
Brakes	Wet disk	Wet disc
Steering	Hydrostatic power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	3,196 lb	Not Published
Seat Suspension & Adjustability	Scissor-link suspension seat; adjustable	Not Published
▶Dimensions & Maneuverability
Wheelbase	68.0 in	69.7 in
Overall Width	69.1 in	54.5 in
Ground Clearance	12.2 in (front axle clearance)	12.8 in
Height to Top of ROPS	93.3 in	94.5 in
Height to Top of Cab Model	85.0 in	Not Applicable
Height to Top of ROPS (folded)	72.0 in	Not Published
Min. Turn Radius without Brakes	9.2 ft (2.8 m)	117.5 in
Overall Length with 3-Point Hitch	120.2 in	131 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	TYM T474 Brush Guard Insert $249.99 A must have if you are working with brush. TYM T474 Hydraulic Valve Cover $184.99 Engineered to protect the exposed hydraulic valve. Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T474 Skid Plate $399.99 Major underside protection to save linkages, lines, valves, and filters.

Find a John Deere dealer near you→Find a TYM dealer near you→

John Deere 3046R vs TYM T474: Quick Answers

Which has more horsepower, the John Deere 3046R or the TYM T474?

The TYM T474 leads on engine hp at 48.3 hp hp, compared to 44.7 hp hp for the John Deere 3046R.

Which has more PTO horsepower, the John Deere 3046R or the TYM T474?

The John Deere 3046R leads on pto hp at 36.6 hp hp, compared to 35.9 hp hp for the TYM T474.

Which has more loader lift capacity, the John Deere 3046R or the TYM T474?

The TYM T474 leads on loader lift at 2,152 lb lb, compared to 1,360 lb lb for the John Deere 3046R.

Which has more three-point hitch lift capacity, the John Deere 3046R or the TYM T474?

The John Deere 3046R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 1,764 lb lb for the TYM T474.
