Kioti DK35 vs TYM 3620

Across 4 measurable specs, this matchup is a dead heat: 1 categories to the Kioti DK35, 1 to the TYM 3620, 2 tied. Machine pages: Kioti DK35 and TYM 3620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

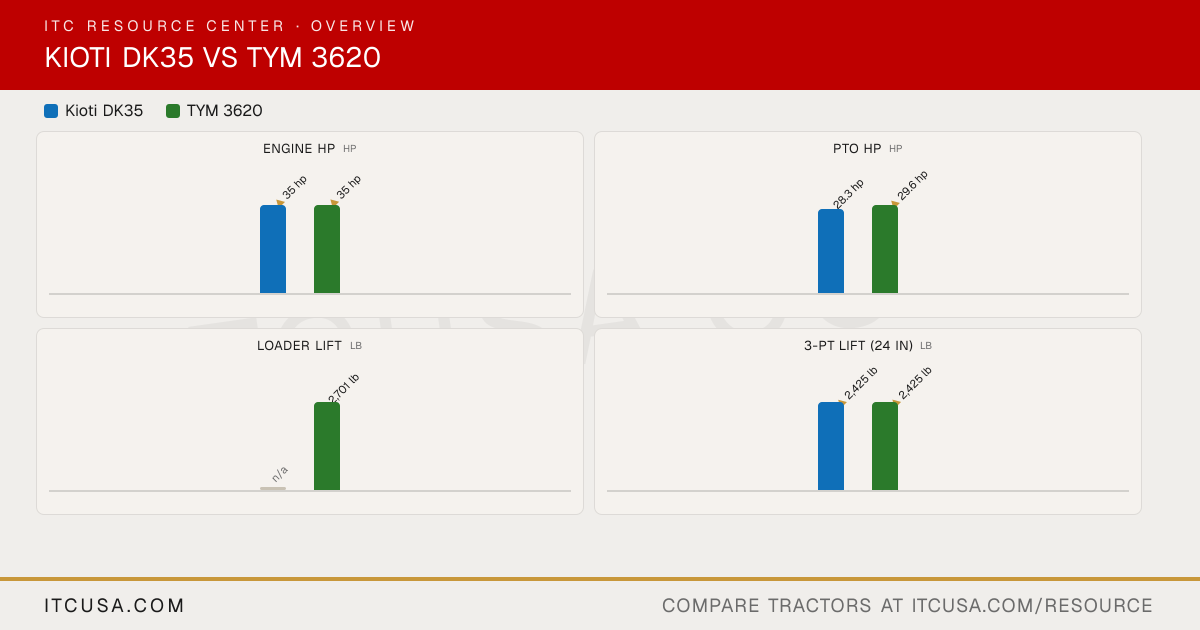

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK35	TYM3620

▶Engine
PTO Power	28.3 hp	29.6 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Not Published	Dry element
Engine Type	4-cycle, liquid-cooled, diesel	3-cylinder, naturally aspirated diesel
Fuel System	Not Published	IDI
Displacement	100.5 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2700 rpm	2500 rpm
Cooling System Type	Liquid-cooled	Not Published
Engine Manufacturer	KIOTI (Daedong)	TYM
Engine Power (Gross)	35 hp	35 hp
Engine Emissions Constraints	Not Published	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Not Published	Single gear pump
Steering Flow	4.7 gpm	8.0 gpm
Implement Flow	7.8 gpm	4.3 gpm
Total Hydraulic Flow	12.5 gpm	12.3 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.5 gpm	12.3 gpm
No. of Optional Remote Valves	1	Up to 4
No. of Standard Remote Valves	0	0
▶PTO & Hitch
PTO Rear	540 rpm	584 rpm
PTO Type	Independent	Independent
Lift Control Type	Position and draft control	Position control
Hitch Lift Capacity	2,270 lb (listed as “at ends”)	3,306 lb
Mid-PTO Availability	Optional (2000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
▶Tire Options
R3 Turf - Rear	41X14-20	41x14-20 / 44x18-20
R3 Turf - Front	27X8.50-15	27x8.5-15 / 29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9X24	420/70x24
R4 Industrial - Front	10X16.5	10x16.5
R1 Agricultural - Rear	12.4-24	12.4-28
R1 Agricultural - Front	7-16	9.5-16
▶Fluid Capacity
Coolant Capacity	Not Published	6.0 qt
Crankcase Capacity	Not Published	4.5 qt
Fuel Tank Capacity	11.5 gal	11.8 gal
Front Axle Fluid Capacity	10 qt	1.8 qt
Transmission / Hydraulic System Capacity	7.8 gal	HST: 11.1 gal; Gear: 10.3 gal
▶Loader & Attachments
Loader Lift Height	Not Published	106.6 in
Loader Breakout Force	Not Published	3,660 lb
Quick Attach Loader System	Not Published	BL200: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	Not Published	2,701 lb
▶Transmission & Drivetrain
Clutch	Not Published	HST: No; Gear: Dry single type
No. of Speeds	8F/8R	HST: F4 x R4 (4-range); Gear: F16 x R16 (4-range)
Transmission Type	Synchronized shuttle	HST: Hydrostatic (HST); Gear: Synchromesh
Max Travel Speed (Forward)	Not Published	HST: 19.5 mph; Gear: 16.0 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock: Standard
▶Chassis, Steering & Controls
Brakes	Wet disc	Wet, multi-disc
Steering	Hydrostatic power steering	Hydrostatic
Frame Type	4x4 MFWD 4WD	Not Published
Front Axle Type	4WD (MFWD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in	71.1 in
Overall Width	57.1 in	64.9 in
Ground Clearance	11.4 in	15.5 in
Height to Top of ROPS	92.5 in	98.4 in
Height to Top of Cab Model	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	126.3 in	127.4 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00

Find a KIOTI dealer near you→Find a TYM dealer near you→

Kioti DK35 vs TYM 3620: Quick Answers

Which has more horsepower, the Kioti DK35 or the TYM 3620?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Kioti DK35 or the TYM 3620?

The TYM 3620 leads on pto hp at 29.6 hp hp, compared to 28.3 hp hp for the Kioti DK35.

Which has more three-point hitch lift capacity, the Kioti DK35 or the TYM 3620?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
