Kioti NX5510 vs Kubota MX5400

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kioti NX5510, 4 to the Kubota MX5400. Machine pages: Kioti NX5510 and Kubota MX5400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

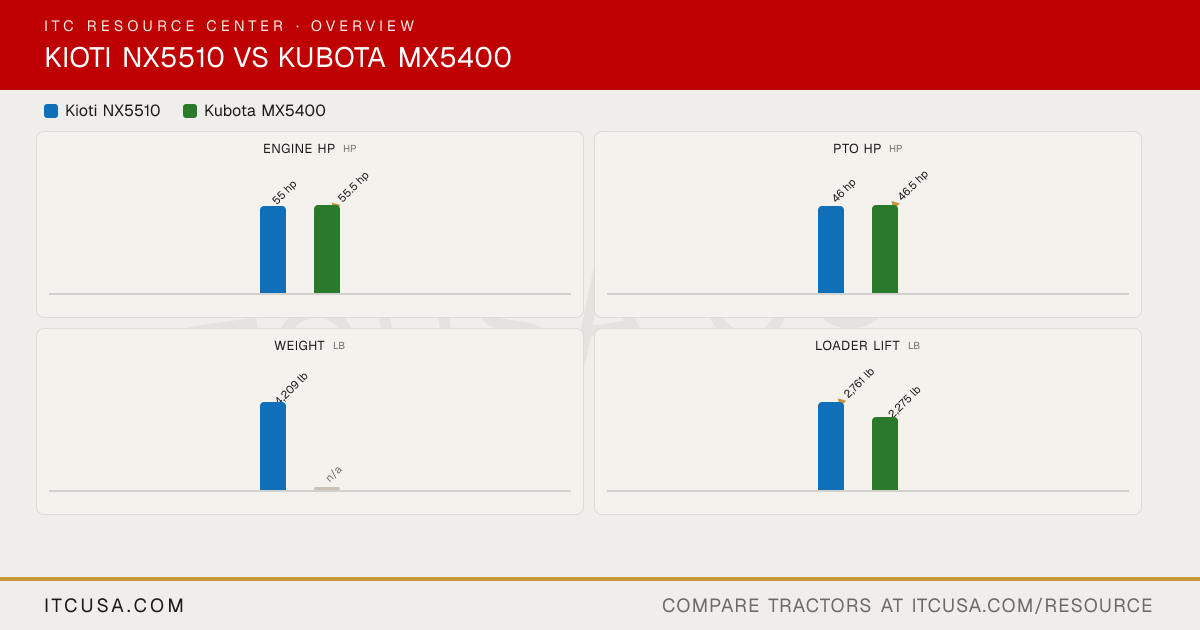

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX5510	KubotaMX5400

▶Engine
PTO Power	46 hp	46.5 hp
Alternator	Not Published	45 A, 12 V
Air Cleaner	Not Published	Dry-dual element
Engine Type	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	Liquid-cooled, diesel, 4-cylinder, Turbocharged
Fuel System	Common Rail Direct Injection (CRDI)	Not Published
Displacement	111.4 in³	148.6 (2434)
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Water-cooled	Liquid-cooled
Engine Manufacturer	KIOTI (Daedong)	Kubota
Engine Power (Gross)	55 hp	55.5 hp
Engine Emissions Constraints	Tier 4	Not Published
▶Weight
Weight with ROPS and Loader	4,209 lb	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Gear	Gear
Steering Flow	8.2 gpm	4.9 gpm
Implement Flow	8.2 gpm	9.5 gpm
Total Hydraulic Flow	16.50 gpm	14.4 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.50 gpm	14.4 gpm
No. of Optional Remote Valves	1	Maximum 3 (opt)
No. of Standard Remote Valves	1	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Live independent, hydraulic PTO with PTO brake, wet clutch
Lift Control Type	Position with Draft Control	Position (std), Draft (opt)
Hitch Lift Capacity	3,177 lbs (at 24 in)	Not Published
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	I & II
Hitch Lift Capacity (at 24”)	3,177 lbs	2310 lbs
▶Tire Options
R3 Turf - Rear	21.5lx16.1	Not Published
R3 Turf - Front	29x12.5-15	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Standard tire size
R4 Industrial - Rear	17.5-24	Not Published
R4 Industrial - Front	10-16.5	Not Published
R1 Agricultural - Rear	13.6-28	14.9-26
R1 Agricultural - Front	9.5-18	DT (2WD): 2 gal-15; DT (4WD), HST (4WD): 9.5-16
▶Fluid Capacity
Coolant Capacity	2.0 gal	Not Published
Crankcase Capacity	1.58 gal	Not Published
Fuel Tank Capacity	14.8 gal	ROPS: 13.5 gal; CAB: 11.9 gal
Front Axle Fluid Capacity	1.8 gal	Not Published
Transmission / Hydraulic System Capacity	14.53 gal	Not Published
▶Loader & Attachments
Loader Lift Height	108.3 in	111.2 in
Loader Breakout Force	3,727 lb	3102 lb (13798 N)
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Lift Capacity (Full Height)	2,761 lb	2275 lb
▶Transmission & Drivetrain
Clutch	Dry Type Single Stage	DT (2WD/4WD): Dry single plate; HST (4WD): No clutch
No. of Speeds	24X24	DT (2WD/4WD): 8F/8R; HST (4WD): 3-range
Transmission Type	Synchro Shuttle	DT (2WD/4WD): 8-speed gear-drive (synchronized shuttle); HST (4WD): 3-range hydrostatic (HST)
Max Travel Speed (Forward)	17.35 mph	DT (2WD/4WD): 17.3 mph; HST (4WD): 17.7 mph
Max Travel Speed (Reverse)	15.42 mph	DT (2WD/4WD): 15.9 mph; HST (4WD): 16.0 mph
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Rear differential lock standard (mechanical)
▶Chassis, Steering & Controls
Brakes	Wet Multi Disc	Mechanical wet disc
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable Seat	High-back suspension seat (optional arm rests)
▶Dimensions & Maneuverability
Wheelbase	75.6 in	74.6 in
Overall Width	65.6 in	69.7 in
Ground Clearance	15.7 in	15.2 in
Height to Top of ROPS	103.1 in	95.7 in
Height to Top of Cab Model	Not Applicable	92.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	9.97 ft (3.04 m)	Not Published
Overall Length with 3-Point Hitch	139.6 in	Not Published
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kubota Standard L & MX Series Brush Guard Insert Kit $269.00

Find a KIOTI dealer near you→Find a Kubota dealer near you→

Kioti NX5510 vs Kubota MX5400: Quick Answers

Which has more horsepower, the Kioti NX5510 or the Kubota MX5400?

The Kubota MX5400 leads on engine hp at 55.5 hp hp, compared to 55 hp hp for the Kioti NX5510.

Which has more PTO horsepower, the Kioti NX5510 or the Kubota MX5400?

The Kubota MX5400 leads on pto hp at 46.5 hp hp, compared to 46 hp hp for the Kioti NX5510.

Which has more loader lift capacity, the Kioti NX5510 or the Kubota MX5400?

The Kioti NX5510 leads on loader lift at 2,761 lb lb, compared to 2,275 lb lb for the Kubota MX5400.

Which has more three-point hitch lift capacity, the Kioti NX5510 or the Kubota MX5400?

The Kioti NX5510 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,310 lb lb for the Kubota MX5400.
