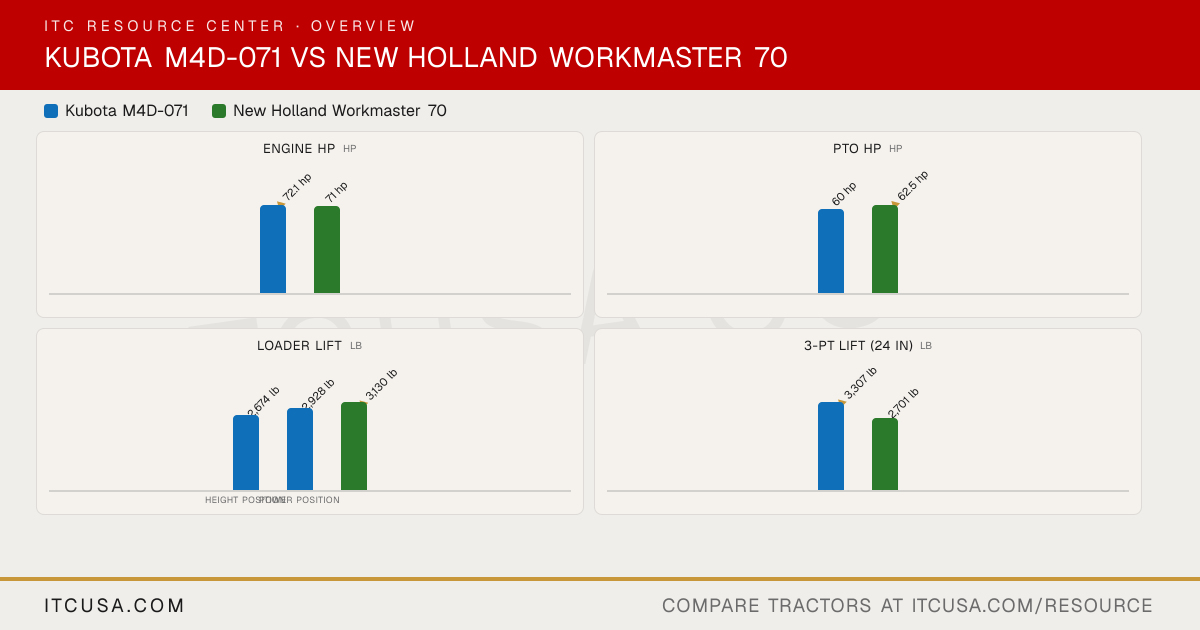

Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaM4D-071
New HollandWorkmaster 70
PTO Power
60 hp
62.5 hp
Alternator
130 A, 12 V
75 A, 12 V
Air Cleaner
Not Published
Inner and outer paper elements
Engine Type
Liquid-cooled, diesel, 4-cylinder
Turbocharged, intercooled 3-cylinder diesel
Fuel System
Common Rail System (CRS)
CRDI
Displacement
203.3 (3331)
136 in³
No. of Cylinders
4
3
Rated Engine Speed
2400 rpm
2600 rpm
Cooling System Type
Liquid-cooled
Pressurized liquid with recirculating bypass
Engine Manufacturer
Kubota
FPT Industrial
Engine Power (Gross)
72.1 hp
71 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Not Published
Pump Type
Gear
Open-center; dual pumps
Steering Flow
6.3 gpm
5.5 gpm
Implement Flow
16.7 gpm
12 gpm
Total Hydraulic Flow
23.0 gpm
17.5 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
23.0 gpm
17.5 gpm
No. of Optional Remote Valves
Max. 3
2
No. of Standard Remote Valves
2 (SCD / FD)
1
PTO Rear
540/540E rpm
540 rpm
PTO Type
Live-independent PTO, electro-hydraulic clutch with brake
Independent
Lift Control Type
Position, draft (top link sensing) & mixed control
Not Published
Hitch Lift Capacity
Not Published
3,307 lb at ball ends
Mid-PTO Availability
Not Published
Not Applicable
Category, 3-Point Hitch
I / II
Category II/I
Hitch Lift Capacity (at 24”)
3307 lbs
2,701 lb
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
Standard tire size
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
Not Published
18.4X24R4
R4 Industrial - Front
Not Published
12.5X18
R1 Agricultural - Rear
420/75R34
13.6X28R1, 6 ply; 14.9X28R1, 6 ply
R1 Agricultural - Front
320/70R24
8.3X24, 6 ply
Coolant Capacity
Not Published
10.6 qt
Crankcase Capacity
Not Published
6.7 qt
Fuel Tank Capacity
23.8 gal
17.2 gal
Front Axle Fluid Capacity
Not Published
8.0 qt
Transmission / Hydraulic System Capacity
Not Published
6.6 gal
Loader Lift Height
Height position: 133.0 in; Power position: 117.6 in
Up to 122 in
Loader Breakout Force
Not Published
Up to 3,527 lb
Quick Attach Loader System
LA1154A: 2-Lever Quick Coupler
600TL: Front loader (quick-attach design)
Loader Lift Capacity (Full Height)
Height position: 2674 lb; Power position: 2928 lb
Up to 3,130 lb
Clutch
Multiple wet disc
LUK, 11 in
No. of Speeds
F12/R12 (option: F18/R18 with creep)
8F/8R
Transmission Type
12-speed electro-hydraulic shuttle (option: 18-speed with creep)
8x8 synchronized shuttle
Max Travel Speed (Forward)
Not Published
19.8 mph
Max Travel Speed (Reverse)
Not Published
20.9 mph
Differential Lock & Limited Slip Options
Front limited slip differential; Rear differential lock (mechanical)
