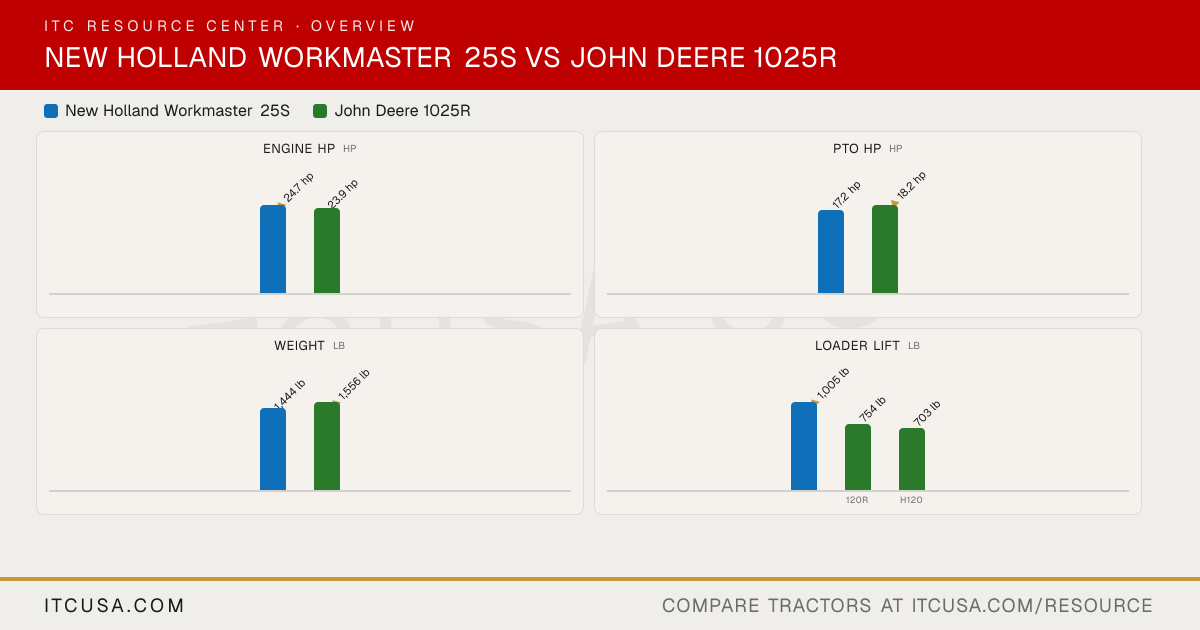

▶ EnginePTO Power 17.2 hp 18.2 hp Alternator 40 A, 12 V 40 A Air Cleaner Not Published Dual element with mechanical restriction indicator Engine Type 3-cylinder, naturally aspirated diesel Diesel Fuel System In-line injection pump Indirect injection Displacement 76.9 in³ 77.3 in³ No. of Cylinders 3 3 Rated Engine Speed 3000 rpm 3200 rpm Cooling System Type Pressurized liquid with recirculating bypass Water pump Engine Manufacturer Yanmar Yanmar Engine Power (Gross) 24.7 hp 23.9 hp @ 200 rpm Engine Emissions Constraints Tier 4B Final Tier 4 ▶ WeightWeight with ROPS and Loader 1,444 lb (ROPS tractor only) approx. 1,444 lb shipping weight open station (no loader); operating weight with loader approx. 1,556 lb shipping Weight with Cab and Loader 1,805 lb (Cab tractor only) approx. 1,996 lb shipping weight with cab Tractor Weight (Base) n/a Open station: 1556 lb ▶ WarrantyWarranty Length & Coverage 6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain) 6-year / 2,000-hour powertrain warranty (standard); PowerGard extended warranty available ▶ HydraulicsPump Type Gear Single gear Steering Flow 2.1 gpm 3.5 gpm Implement Flow 4.6 gpm 3.5 gpm Total Hydraulic Flow 6.7 gpm 6.3 gpm 23.8 lpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 3.5 gpm per pump (implement circuit); total system output 6.3 gpm Overall Hydraulic Pump Flow 6.7 gpm 3.5 gpm 13.2 lpm No. of Optional Remote Valves 1 Three No. of Standard Remote Valves 0 n/a System Operating Pressure n/a 2000 psi ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent, electro-hydraulic engagement Independent Lift Control Type Lift-hold-lower position control Hitch Lift Capacity 992 lb at ball ends 758 lb Mid-PTO Availability Standard (2,500 rpm) 2100 rpm Category, 3-Point Hitch Category I Limited Category 1 Hitch Lift Capacity (at 24”) 728 lb 758 lb ▶ Tire OptionsR3 Turf - Rear 26X12.0-12 26x12-12 R3 Turf - Front 18X8.50-10 18x8.50-10 Tire Size & Options R3 Turf, R4 Industrial Front: R3 Turf 18x8.50-10, R3 Turf Radial 18x8.50-10, R4 18x8.5-10 | Rear: R3 Turf 26x12-12, R4 26x12-12 R4 Industrial - Rear 26X12.0-12 26x12-12 R4 Industrial - Front 18X8.50-10 18x8.5-10 R1 Agricultural - Rear Not Applicable 26x12.00-12 (R4 Industrial standard; R1 Agricultural not a standard listed option) R1 Agricultural - Front Not Applicable 18x8.50-10 (R3 Turf / R4 Industrial listed; R1 Agricultural not a standard listed option) ▶ Fluid CapacityCoolant Capacity 3.5 qt 0.98 gal Crankcase Capacity 3.0 qt 0.71 gal Fuel Tank Capacity 6.6 gal 5.6 gal Front Axle Fluid Capacity 0.5 gal 0.74 gal Transmission / Hydraulic System Capacity 3.0 gal 3.3 gal ▶ Loader & AttachmentsLoader Lift Height 72 in 72 in to maximum height at pivot pin (120R loader) Loader Breakout Force 2,078 lb 120R: 1,823 lbf at pivot point; H120: 1,724 lbf at pivot point Quick Attach Loader System 100LC: Quick Mount system (no tools) 120R Quik-Park Loader System Loader Lift Capacity (Full Height) 1,005 lb 120R: 754 lb at pivot point to max height; H120: 703 lb at pivot point to max height ▶ Transmission & DrivetrainClutch Not Applicable wet disc No. of Speeds Infinite (2-range) Infinite (hydrostatic), 2-range (Hi/Lo) forward and reverse Transmission Type 2-Range Hydrostatic / Dual Pedal hydrostatic Max Travel Speed (Forward) 9.1 mph 9.1 mph Max Travel Speed (Reverse) 5.5 mph 9.1 mph Differential Lock & Limited Slip Options Mechanical, foot-operated rear diff lock Differential lock Yes; Limited slip differential No ▶ Chassis, Steering & ControlsBrakes Wet, multi-disc Wet disc (left-hand pedal) Steering Central support, bevel gear type Power Frame Type Not Published Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive Front Axle Type 4WD (FWD) Four-wheel drive Drawbar Capacity Not Published n/a Front Axle Rating Not Published Front 1349 lb Seat Suspension & Adjustability Not Published Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt ▶ Dimensions & ManeuverabilityWheelbase 56.1 in 57.1 inches 57.1 in Overall Width 46.7 in 47 in Ground Clearance 12 in 7.7 in. Height to Top of ROPS 90 in n/a Height to Top of Cab Model 87.4 in n/a Height to Top of ROPS (folded) 64 in n/a Min. Turn Radius without Brakes 94 in 2.51 m 8.2 ft Overall Length with 3-Point Hitch 97.4 in n/a
