John Deere 1025R vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 25S leads 4 categories to 3 (2 tied). Machine pages: John Deere 1025R and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 1025R	New Holland Workmaster 25S
Engine HP (hp)	23.9 hp	▲ 24.7 hp
PTO HP (hp)	▲ 18.2 hp	17.2 hp
Weight (lb)	▲ 1,556 lb	1,444 lb
Loader Lift (lb)	754 lb	▲ 1,005 lb
3-Pt Lift (24 in) (lb)	▲ 758 lb	728 lb
Lift Height (in)	72 in	72 in
Breakout Force (lbf)	1,823 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 6.7 gpm
Travel Speed (mph)	9.1 mph	9.1 mph

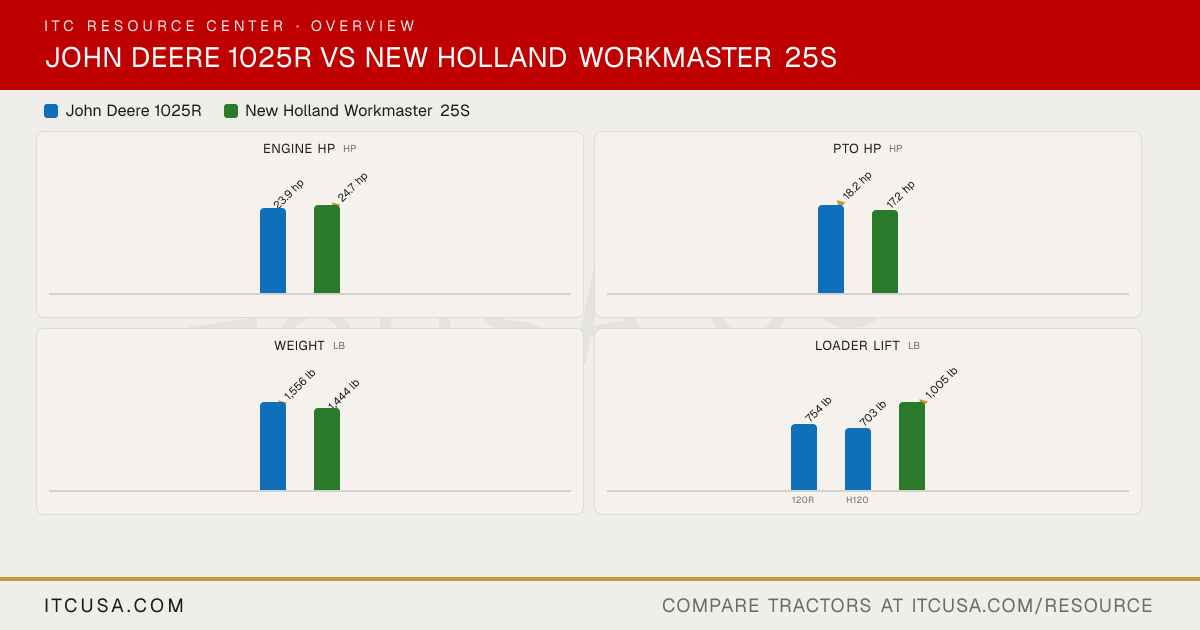

The headline numbers at a glance.

John Deere 1025RNew Holland Workmaster 25S

Engine HPhp

23.9 hp

▲24.7 hp

PTO HPhp

▲18.2 hp

17.2 hp

Weightlb

▲1,556 lb

1,444 lb

Loader Liftlb

754 lb

703 lb

▲1,005 lb

120RH120

3-Pt Lift (24 in)lb

▲758 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1025R	New HollandWorkmaster 25S


PTO Power	18.2 hp	17.2 hp
Alternator	40 A	40 A, 12 V
Air Cleaner	Dual element with mechanical restriction indicator	Not Published
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Indirect injection	In-line injection pump
Displacement	77.3 in³	76.9 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	3000 rpm
Cooling System Type	Water pump	Pressurized liquid with recirculating bypass
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	23.9 hp @ 200 rpm	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Tractor Weight (Base)	Open station: 1556 lb	n/a
Weight with Cab and Loader	approx. 1,996 lb shipping weight with cab	1,805 lb (Cab tractor only)
Weight with ROPS and Loader	approx. 1,444 lb shipping weight open station (no loader); operating weight with loader approx. 1,556 lb shipping	1,444 lb (ROPS tractor only)

Warranty Length & Coverage	6-year / 2,000-hour powertrain warranty (standard); PowerGard extended warranty available	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Single gear	Gear
Steering Flow	3.5 gpm	2.1 gpm
Implement Flow	3.5 gpm	4.6 gpm
Total Hydraulic Flow	6.3 gpm 23.8 lpm	6.7 gpm
Hydraulic System Type	Open center	Open center
System Operating Pressure	2000 psi	n/a
Rear Remote Hydraulic Flow	3.5 gpm per pump (implement circuit); total system output 6.3 gpm	Not Published
Overall Hydraulic Pump Flow	3.5 gpm 13.2 lpm	6.7 gpm
No. of Optional Remote Valves	Three	1
No. of Standard Remote Valves	n/a	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent, electro-hydraulic engagement
Lift Control Type	position control	Lift-hold-lower
Hitch Lift Capacity	758 lb	992 lb at ball ends
Mid-PTO Availability	2100 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Limited Category 1	Category I
Hitch Lift Capacity (at 24”)	758 lb	728 lb

R3 Turf - Rear	26x12-12	26X12.0-12
R3 Turf - Front	18x8.50-10	18X8.50-10
Tire Size & Options	Front: R3 Turf 18x8.50-10, R3 Turf Radial 18x8.50-10, R4 18x8.5-10 \| Rear: R3 Turf 26x12-12, R4 26x12-12	R3 Turf, R4 Industrial
R4 Industrial - Rear	26x12-12	26X12.0-12
R4 Industrial - Front	18x8.5-10	18X8.50-10
R1 Agricultural - Rear	26x12.00-12 (R4 Industrial standard; R1 Agricultural not a standard listed option)	Not Applicable
R1 Agricultural - Front	18x8.50-10 (R3 Turf / R4 Industrial listed; R1 Agricultural not a standard listed option)	Not Applicable

Coolant Capacity	0.98 gal	3.5 qt
Crankcase Capacity	0.71 gal	3.0 qt
Fuel Tank Capacity	5.6 gal	6.6 gal
Front Axle Fluid Capacity	0.74 gal	0.5 gal
Transmission / Hydraulic System Capacity	3.3 gal	3.0 gal

Loader Lift Height	72 in to maximum height at pivot pin (120R loader)	72 in
Loader Breakout Force	120R: 1,823 lbf at pivot point; H120: 1,724 lbf at pivot point	2,078 lb
Quick Attach Loader System	120R Quik-Park Loader System	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	120R: 754 lb at pivot point to max height; H120: 703 lb at pivot point to max height	1,005 lb

Clutch	wet disc	Not Applicable
No. of Speeds	Infinite (hydrostatic), 2-range (Hi/Lo) forward and reverse	Infinite (2-range)
Transmission Type	hydrostatic	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	9.1 mph	9.1 mph
Max Travel Speed (Reverse)	9.1 mph	5.5 mph
Differential Lock & Limited Slip Options	Differential lock Yes; Limited slip differential No	Mechanical, foot-operated rear diff lock

Brakes	Wet disc (left-hand pedal)	Wet, multi-disc
Steering	Power	Central support, bevel gear type
Frame Type	Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive	Not Published
Front Axle Type	Four-wheel drive	4WD (FWD)
Front Axle Rating	Front 1349 lb	Not Published
Seat Suspension & Adjustability	Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt	Not Published
Drawbar Capacity	n/a	Not Published

Wheelbase	57.1 inches 57.1 in	56.1 in
Overall Width	47 in	46.7 in
Ground Clearance	7.7 in.	12 in
Min. Turn Radius without Brakes	2.51 m 8.2 ft	94 in
Height to Top of ROPS	n/a	90 in
Height to Top of Cab Model	n/a	87.4 in
Height to Top of ROPS (folded)	n/a	64 in
Overall Length with 3-Point Hitch	n/a	97.4 in

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 1025R vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the John Deere 1025R or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 23.9 hp hp for the John Deere 1025R.
Which has more PTO horsepower, the John Deere 1025R or the New Holland Workmaster 25S?: The John Deere 1025R leads on pto hp at 18.2 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which is heavier, the John Deere 1025R or the New Holland Workmaster 25S?: The John Deere 1025R leads on weight at 1,556 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.
Which has more loader lift capacity, the John Deere 1025R or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on loader lift at 1,005 lb lb, compared to 754 lb lb for the John Deere 1025R.
Which has more three-point hitch lift capacity, the John Deere 1025R or the New Holland Workmaster 25S?: The John Deere 1025R leads on 3-pt lift (24 in) at 758 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

More Head-to-Heads

Category Verdict

Spec	John Deere 1025R	New Holland Workmaster 25S
Engine HP (hp)	23.9 hp	▲ 24.7 hp
PTO HP (hp)	▲ 18.2 hp	17.2 hp
Weight (lb)	▲ 1,556 lb	1,444 lb
Loader Lift (lb)	754 lb	▲ 1,005 lb
3-Pt Lift (24 in) (lb)	▲ 758 lb	728 lb
Lift Height (in)	72 in	72 in
Breakout Force (lbf)	1,823 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 6.7 gpm
Travel Speed (mph)	9.1 mph	9.1 mph

The headline numbers at a glance.

John Deere 1025RNew Holland Workmaster 25S

Engine HPhp

23.9 hp

▲24.7 hp

PTO HPhp

▲18.2 hp

17.2 hp

Weightlb

▲1,556 lb

1,444 lb

Loader Liftlb

754 lb

703 lb

▲1,005 lb

120RH120

3-Pt Lift (24 in)lb

▲758 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1025R	New HollandWorkmaster 25S


PTO Power	18.2 hp	17.2 hp
Alternator	40 A	40 A, 12 V
Air Cleaner	Dual element with mechanical restriction indicator	Not Published
Engine Type	Diesel	3-cylinder, naturally aspirated diesel
Fuel System	Indirect injection	In-line injection pump
Displacement	77.3 in³	76.9 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	3000 rpm
Cooling System Type	Water pump	Pressurized liquid with recirculating bypass
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	23.9 hp @ 200 rpm	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Tractor Weight (Base)	Open station: 1556 lb	n/a
Weight with Cab and Loader	approx. 1,996 lb shipping weight with cab	1,805 lb (Cab tractor only)
Weight with ROPS and Loader	approx. 1,444 lb shipping weight open station (no loader); operating weight with loader approx. 1,556 lb shipping	1,444 lb (ROPS tractor only)

Warranty Length & Coverage	6-year / 2,000-hour powertrain warranty (standard); PowerGard extended warranty available	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Single gear	Gear
Steering Flow	3.5 gpm	2.1 gpm
Implement Flow	3.5 gpm	4.6 gpm
Total Hydraulic Flow	6.3 gpm 23.8 lpm	6.7 gpm
Hydraulic System Type	Open center	Open center
System Operating Pressure	2000 psi	n/a
Rear Remote Hydraulic Flow	3.5 gpm per pump (implement circuit); total system output 6.3 gpm	Not Published
Overall Hydraulic Pump Flow	3.5 gpm 13.2 lpm	6.7 gpm
No. of Optional Remote Valves	Three	1
No. of Standard Remote Valves	n/a	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent, electro-hydraulic engagement
Lift Control Type	position control	Lift-hold-lower
Hitch Lift Capacity	758 lb	992 lb at ball ends
Mid-PTO Availability	2100 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Limited Category 1	Category I
Hitch Lift Capacity (at 24”)	758 lb	728 lb

R3 Turf - Rear	26x12-12	26X12.0-12
R3 Turf - Front	18x8.50-10	18X8.50-10
Tire Size & Options	Front: R3 Turf 18x8.50-10, R3 Turf Radial 18x8.50-10, R4 18x8.5-10 \| Rear: R3 Turf 26x12-12, R4 26x12-12	R3 Turf, R4 Industrial
R4 Industrial - Rear	26x12-12	26X12.0-12
R4 Industrial - Front	18x8.5-10	18X8.50-10
R1 Agricultural - Rear	26x12.00-12 (R4 Industrial standard; R1 Agricultural not a standard listed option)	Not Applicable
R1 Agricultural - Front	18x8.50-10 (R3 Turf / R4 Industrial listed; R1 Agricultural not a standard listed option)	Not Applicable

Coolant Capacity	0.98 gal	3.5 qt
Crankcase Capacity	0.71 gal	3.0 qt
Fuel Tank Capacity	5.6 gal	6.6 gal
Front Axle Fluid Capacity	0.74 gal	0.5 gal
Transmission / Hydraulic System Capacity	3.3 gal	3.0 gal

Loader Lift Height	72 in to maximum height at pivot pin (120R loader)	72 in
Loader Breakout Force	120R: 1,823 lbf at pivot point; H120: 1,724 lbf at pivot point	2,078 lb
Quick Attach Loader System	120R Quik-Park Loader System	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	120R: 754 lb at pivot point to max height; H120: 703 lb at pivot point to max height	1,005 lb

Clutch	wet disc	Not Applicable
No. of Speeds	Infinite (hydrostatic), 2-range (Hi/Lo) forward and reverse	Infinite (2-range)
Transmission Type	hydrostatic	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	9.1 mph	9.1 mph
Max Travel Speed (Reverse)	9.1 mph	5.5 mph
Differential Lock & Limited Slip Options	Differential lock Yes; Limited slip differential No	Mechanical, foot-operated rear diff lock

Brakes	Wet disc (left-hand pedal)	Wet, multi-disc
Steering	Power	Central support, bevel gear type
Frame Type	Semi-flat platform; two-post folding ROPS; 4WD with mechanical front-wheel drive	Not Published
Front Axle Type	Four-wheel drive	4WD (FWD)
Front Axle Rating	Front 1349 lb	Not Published
Seat Suspension & Adjustability	Premium seat; adjusts fore/aft; seat flips forward; high seat back and armrests; retractable seat belt	Not Published
Drawbar Capacity	n/a	Not Published

Wheelbase	57.1 inches 57.1 in	56.1 in
Overall Width	47 in	46.7 in
Ground Clearance	7.7 in.	12 in
Min. Turn Radius without Brakes	2.51 m 8.2 ft	94 in
Height to Top of ROPS	n/a	90 in
Height to Top of Cab Model	n/a	87.4 in
Height to Top of ROPS (folded)	n/a	64 in
Overall Length with 3-Point Hitch	n/a	97.4 in

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 1025R vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the John Deere 1025R or the New Holland Workmaster 25S?

The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 23.9 hp hp for the John Deere 1025R.

Which has more PTO horsepower, the John Deere 1025R or the New Holland Workmaster 25S?

The John Deere 1025R leads on pto hp at 18.2 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the John Deere 1025R or the New Holland Workmaster 25S?

The John Deere 1025R leads on weight at 1,556 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the John Deere 1025R or the New Holland Workmaster 25S?

The New Holland Workmaster 25S leads on loader lift at 1,005 lb lb, compared to 754 lb lb for the John Deere 1025R.

Which has more three-point hitch lift capacity, the John Deere 1025R or the New Holland Workmaster 25S?

The John Deere 1025R leads on 3-pt lift (24 in) at 758 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
