TYM T474 vs John Deere 3046R | Side-by-side comparison | ITC Resource Center
Compare Tractors

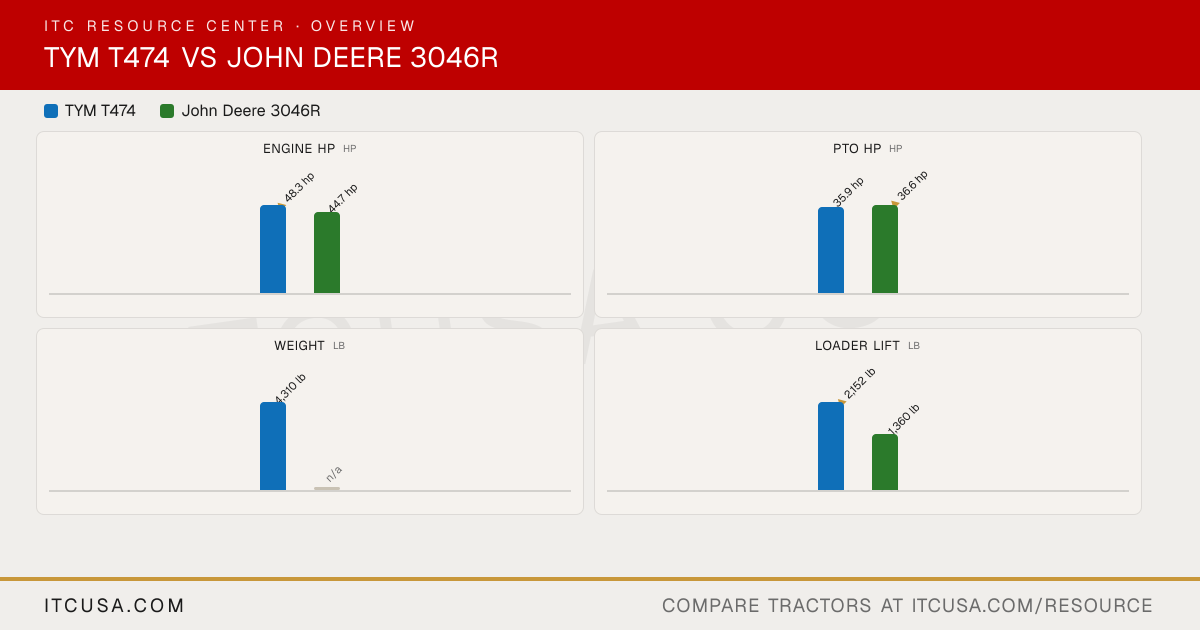

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT474
John Deere3046R
PTO Power
35.9 hp
36.6 hp
Alternator
70 A, 12 V
75 A, 12 V
Air Cleaner
Single dry
Dry type with safety element (dual element)
Engine Type
4-cylinder, naturally aspirated diesel
Diesel
Fuel System
IDI
High pressure common rail direct injection (HPCR)
Displacement
139.5 in³
97.6 in³
No. of Cylinders
4
3
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Not Published
Liquid (water pump)
Engine Manufacturer
TYM
Yanmar
Engine Power (Gross)
48.3 hp
44.7 hp @ 600 rpm
Engine Emissions Constraints
Stage V
Tier 4
Weight with ROPS and Loader
4,310 lb
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
