John Deere 3032E vs TYM 3015

Across 7 measurable specs, the TYM 3015 leads 5 categories to 1 (1 tied). Machine pages: John Deere 3032E and TYM 3015.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

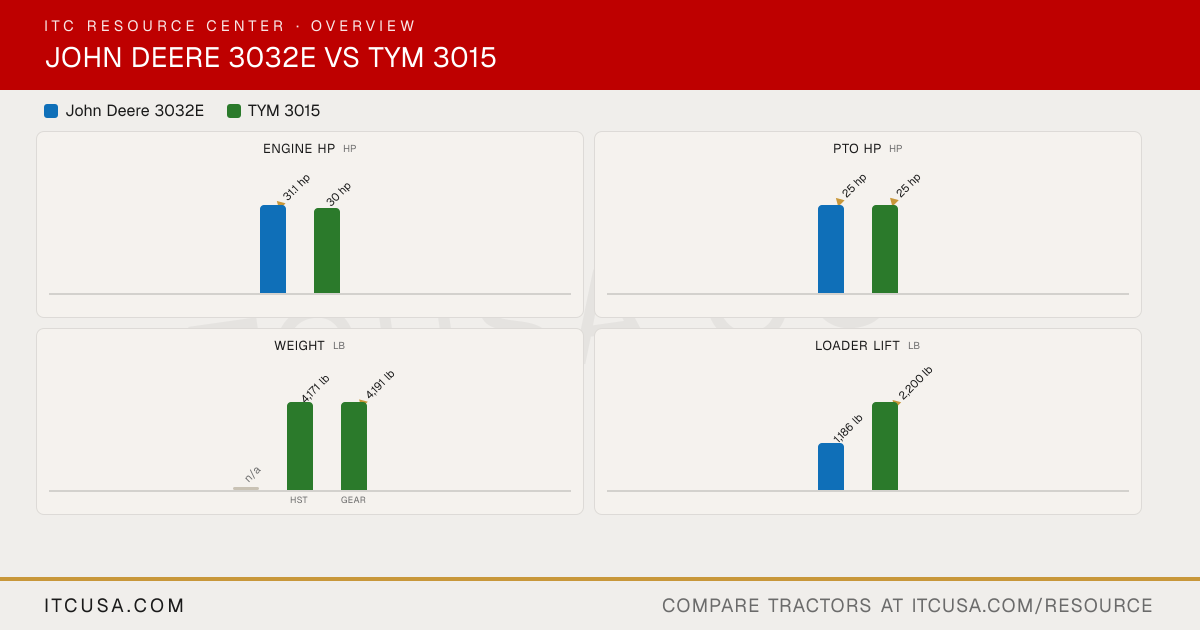

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3032E	TYM3015

▶Engine
PTO Power	25 hp	25 hp
Alternator	55 A, 12 V	50 A, 12 V
Air Cleaner	Dry, dual element	Dry Element
Engine Type	Diesel, naturally aspirated	3-cylinder, naturally aspirated diesel
Fuel System	High pressure common rail direct injection	IDI
Displacement	100.2 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2600 rpm
Cooling System Type	Water pump	Not Published
Engine Manufacturer	Yanmar	TYM T1700N3
Engine Power (Gross)	31.1 hp @ 500 rpm	30 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Dual gear	Single Gear Pump
Steering Flow	4.4 gpm	8 gpm
Implement Flow	5.9 gpm	4.3 gpm
Total Hydraulic Flow	10.3 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	10.3 gpm	12.3 gpm
No. of Optional Remote Valves	Up to 2 (optional)	Up to 4
No. of Standard Remote Valves	Not Published	0
▶PTO & Hitch
PTO Rear	540 rpm	560 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	3,306 lb
Mid-PTO Availability	Not Applicable	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,356 lb @ 24 in behind center link	2,425 lb
▶Tire Options
R3 Turf - Rear	41X14-20	Not Published
R3 Turf - Front	27X8.50-15	Not Published
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	15.00-19.5 or 43X16-20	43x16.00-20
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	28x8.50-15
R1 Agricultural - Rear	11.2-24	12.4-24
R1 Agricultural - Front	7-14	8.0-16
▶Fluid Capacity
Coolant Capacity	1.3 gal	5.3 qt
Crankcase Capacity	4.7 qt (with filter)	4.5 qt
Fuel Tank Capacity	7.5 gal	7.1 gal
Front Axle Fluid Capacity	1 gal	1.7 qt
Transmission / Hydraulic System Capacity	5.5 gal	HST: 9.8 gal; Gear: 8.9 gal
▶Loader & Attachments
Loader Lift Height	84.0 in	104.9 in
Loader Breakout Force	1,704 lb	3,422 lb
Quick Attach Loader System	Quick-change attachment carrier	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	1,186 lb	2,200 lb
▶Transmission & Drivetrain
Clutch	Not Applicable	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	Infinite (2-range HST)	HST: 3-Range; Gear: F12 x R12
Transmission Type	Hydrostatic (2-range)	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	Not Published	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock
▶Chassis, Steering & Controls
Brakes	Wet disc	Wet, Multi-disc
Steering	Power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD (MFWD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat
▶Dimensions & Maneuverability
Wheelbase	62.8 in	65.7 in
Overall Width	Not Published	56.3 in
Ground Clearance	9.4 in	14.4 in
Height to Top of ROPS	Not Published	97.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	104.7 in
Overall Length with 3-Point Hitch	Not Published	120.9 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00

Find a John Deere dealer near you→Find a TYM dealer near you→

John Deere 3032E vs TYM 3015: Quick Answers

Which has more horsepower, the John Deere 3032E or the TYM 3015?

The John Deere 3032E leads on engine hp at 31.1 hp hp, compared to 30 hp hp for the TYM 3015.

Which has more PTO horsepower, the John Deere 3032E or the TYM 3015?

They are effectively tied: both machines are rated at 25 hp hp for pto hp.

Which has more loader lift capacity, the John Deere 3032E or the TYM 3015?

The TYM 3015 leads on loader lift at 2,200 lb lb, compared to 1,186 lb lb for the John Deere 3032E.

Which has more three-point hitch lift capacity, the John Deere 3032E or the TYM 3015?

The TYM 3015 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,356 lb lb for the John Deere 3032E.
